Aluminum window VERTISTACK™ CLEAR

sliding and stackingdouble-glazeddouble leaf

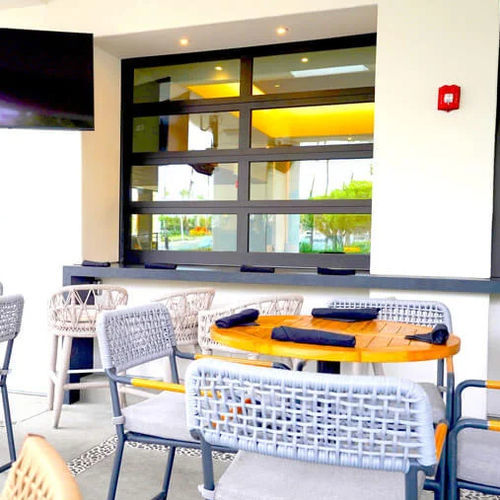

The VertiStack Clear door features a unique construction with sections that stack above the opening, eliminating the need for overhead tracks. This allows for a clear ceiling and won't conflict with mechanical, electrical or plumbing fixtures located in the ceiling. Designed with a clean, modern aesthetic, there are no hinges or exposed tracks or cables, and it is available with a variety of aluminum finishes and window materials. MODEL VS904 Stiles: - Double end stiles standard Glazing Available: - Variety of glass and acrylic panels are available including tempered, insulated, frosted and low-E options Glass/Acrylic Thickness: - Glass thickness available in 1/8", 1/4" and 1/2". Tri-wall polycarbonate thickness available in 5/8". Springs: - 25,000 standard cycle Track Size: - 2" track standard 25,000 cycle torsion springs Section locking devices on both sides of the door for increased security High-strength strap assembly Commercial 10 ball rollers 2” track mounted to a full-height 12-gauge wall angle This product is available for commercial applications only, not for residential applications at this time.
