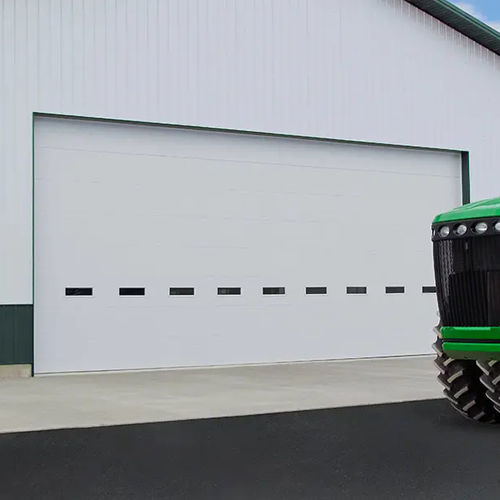

Sectional garage door ENERGY SERIES

steelpolystyreneautomatic

Clopay Energy Series overhead sectional doors provide durability, energy efficiency and multiple performance and design options. They feature polystyrene insulation which helps reduce heating and cooling costs with years of reliable service. These commercial doors offer stucco or woodgrain embossed steel exterior skins with flush, minor ribbed, or raised panel section designs. Ideal applications include warehouses, loading docks and industrial and agricultural facilities. Panel Design: - 2" thick stucco embossed steel with light ribbed (3200) or flush (3220) pattern Steel Gauge: - 24 gauge (.22" min) exterior (3200) 20 gauge (.034" min) exterior (3220) 27 gauge (.016" min) interior Joint Design: - Tongue & groove section joint with silicone filled thermal break prevents cold or heat from passing through the section Termal Conductivity: - R-value 9.1* Paint System: - 3-stage paint process delivers maintenance free finish that resists rust perforation Colors: - Pre-painted white, brown, tan or gray (3200) Pre-painted white or brown (3220) Trinar white (3200) Limited Warranty: - 10-year paint / 10-year delamination / one-year material & workmanship Panel Design: - 1-3/8" thick stucco embossed steel with micro groove pattern (3150) 1-3/8" thick rasied woodgrain embossed steel (3154) 1-3/8" thick flush woodgrain embossed steel (3155) Steel Gauge: - 27 gauge (.016" min) exterior; 27 gauge (.016" min) interior Joint Design: - Tongue & groove section joint with silicone filled thermal break prevents cold or heat from passing through the section Termal Conductivity: - R-value 6.5*
