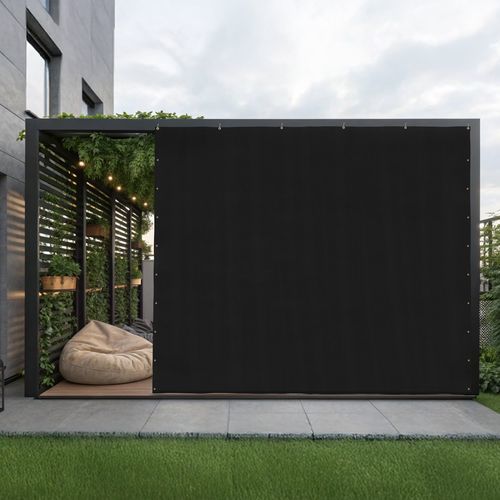

Eyelet curtain OUTDOOR

customizable patterncustomizablePVC

Product overview
Durable outdoor vinyl curtains engineered for waterproofing, wind protection and privacy. Custom-made to order with selectable fabrics (Tarp Max, Tarp Tuff, Tarp Clear), thicknesses and mounting options. Suitable for industrial and commercial outdoor installations such as patios, pergolas, loading bays, warehouses and enclosures.

Key highlights

• All-weather protection: 100% waterproof and designed to resist rain, wind, snow and dust.
• Heavy-duty construction: Tear- and abrasion-resistant materials for intensive use.
• Operational reliability: Flexible performance across temperature ranges for smooth handling.
• Material options: Engineered fabrics (Tarp Max, Tarp Tuff, Tarp Clear) to match visibility and exposure requirements.
• UV and temperature resistance: Formulated to withstand sun exposure and extreme temperatures.
• Fully customizable: Cut-to-size, grommet placement, tie-downs and multiple finish/mount choices.

Comparison (Product vs Generic)

• Material options: Tarp Max/Tarp Tuff/Tarp Clear — engineered PVC-coated polyester or rigid clear PVC | Generic — thin polyester or basic plastic.
• Weatherproofing: 100% waterproof and windproof design | Generic — limited element resistance.
• Durability: High tear and abrasion resistance; industrial grade available | Generic — prone to damage under frequent use.
• Privacy & visibility: Opaque or clear panels possible for tailored privacy/visibility | Generic — often foggy or low opacity.
• UV protection: High UV resistance for selected fabrics | Generic — limited fade and degradation resistance.
• Customization & warranty: Full custom options with warranties up to 5 years (varies by fabric) | Generic — minimal options, limited/no warranty.

Added benefits

• Protects outdoor living and working areas from the elements.
• Versatile use: patios, restaurant terraces, industrial enclosures, warehouses, loading areas.
• Energy efficiency: Helps reduce heat loss/gain when used as a barrier, supporting HVAC performance.
• Low maintenance: Resistant to stains, mold and mildew; easy cleaning and care.

Measurements & customization
Custom sizes accepted; typical inputs in feet and inches. Standard and bespoke presets available (examples: 8H x 8W, 8H x 12W, 4H x 8W). Grommet placement (top, sides or none), tie-downs, logo or text printing and additional accessories can be specified. Manufacturer measurement guide (PDF) and installation recommendations provided. Allow an extra 1–2" for installation clearance.

Technical specifications

• Commercial denomination: Outdoor Vinyl Curtains (custom, made-to-measure)
• Fabric options and typical specs:
  • Tarp Max — ~13 oz (~430 GSM), 1000 Denier, 15 mil, PVC-coated polyester, medium duty; warranty: 3 years.
  • Tarp Tuff — ~18 oz (~550 GSM), 1000 Denier, 18 mil, PVC-coated polyester, heavy/industrial duty; warranty: up to 5 years.
  • Tarp Clear — ~18 oz (~580 GSM), 20 mil, ultra-clear rigid PVC, high clarity; warranty: 3 years.
• Grommet specification: standard Size #5 (approx. 17 mm ID, 32 mm OD).
• Thickness options: 15 mil, 18 mil, 20 mil depending on fabric.
• Performance: 100% waterproof, high wind resistance, UV-resistant (levels vary by fabric), tear & abrasion resistant.
• Temperature tolerance: Designed for hot and cold climates without cracking or warping.
• Customization options: Cut-to-size, selectable grommet positioning, tie downs, logo/text personalization.
• Mounting & installation: Multiple mounting finishes; measurement inputs in feet/inches; recommended 1–2" extra for install leeway.
• Typical uses: Patios, pergolas, garages, commercial enclosures, warehouses, partitions, greenhouses, industrial shelters.
• Warranty: Up to 5 years depending on fabric (Tarp Tuff highest), typically 3 years for other fabrics.
• Packaging & delivery: Custom-cut curtains shipped per order (rolled or folded based on dimensions); bulk order and logistics support available.
