Eyelet curtain CLEAR PANEL

customizablepolyesterPVC

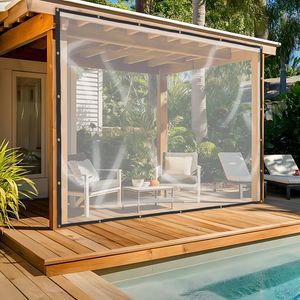

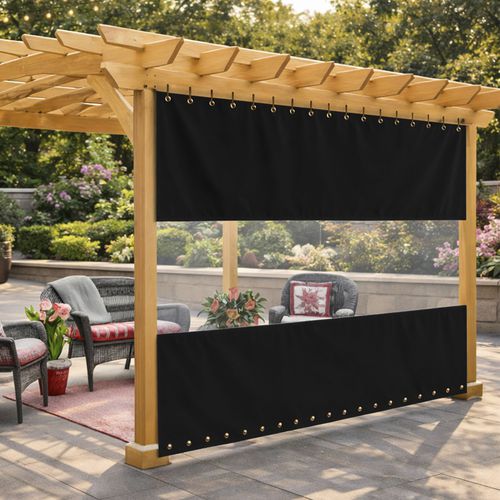

Product overview Curtain with clear vinyl panel designed for outdoor enclosures (patios, terraces, commercial outdoor areas). Integrates a transparent vinyl window into a PVC-coated polyester curtain to provide light transmission and weather protection while preserving visibility.

Key features

• Versatile applications: suitable for residential and light-to-medium commercial outdoor enclosures.
• Durable materials: available in two fabric grades (Tarp Max, Tarp Tuff) to match duty requirements.
• Customizable: choice of fabric, color, clear-panel height/width, and grommet/webbing placement.
• Installation options: grommets, webbing or sewn pockets for straightforward hanging.
• Branding: option for UV-resistant printed logos or text.
• Optional accessories: sewn-in weighted chain in hem, reinforced edges and spare grommets.

Materials & Fabrics

• Tarp Max — 13 oz / 430 GSM / 1000 Denier / 15 mil; PVC-coated polyester, medium duty.
• Tarp Tuff — 18 oz / 550 GSM / 1000 Denier / 18 mil; PVC-coated polyester, heavy duty.
• Both fabrics: water resistant, UV resistant, tear and abrasion resistant; clear panel: transparent PVC vinyl, wipe-clean.

Customization & options Select fabric grade (Tarp Max or Tarp Tuff), color, clear-panel height and width, grommet size/placement or webbing position. Optional sewn-in weighted chain at bottom hem and reinforced seams. Bulk/volume pricing available. Note: curtains or panels wider than 6 ft will include joints.

Measurements (example values shown on product page)

• All dimensions in feet.
• Top Height (H1): 4 ft (sample).
• Clear Panel Height (H2): 2 ft (sample).
• Bottom Height (H3): 4 ft (sample).
• Width (D): 10 ft (sample).

Usage & maintenance Intended for outdoor use to shield areas from wind and rain while maintaining visibility. Clean clear vinyl with a soft cloth and mild detergent; avoid abrasive cleaners. Follow fabric care recommendations to preserve performance. Store rolled and dry when not in use.

Technical specifications

• Product: Curtain with clear vinyl panel
• Fabrics: Tarp Max (13 oz / 430 GSM / 1000 Denier / 15 mil), Tarp Tuff (18 oz / 550 GSM / 1000 Denier / 18 mil)
• Material: PVC-coated polyester
• Properties: water resistant, UV resistant, tear & abrasion resistant
• Example grommet: Size #2 — 9 mm ID / 19 mm OD
• Optional: sewn-in weighted chain, customized grommet/webbing placement, UV-resistant logo/text
• Recommended use: moderate weather (Tarp Max); heavy-duty/industrial applications (Tarp Tuff)
• Warranty (fabric dependent): Tarp Max — example 3 years; Tarp Tuff — example 5 years
• Note: widths above 6 ft will have joints
