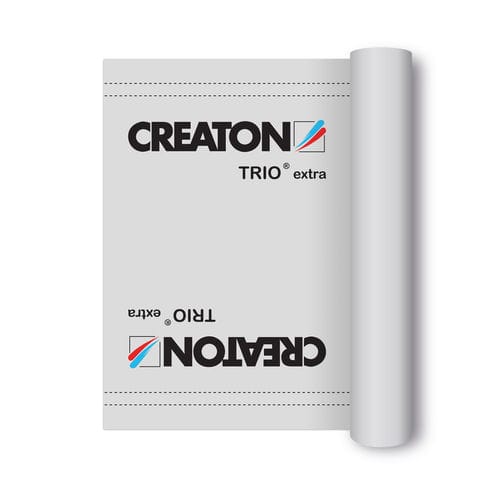

4-layer, vapour-permeable sheathing membrane with microporous film and woven grid
Can be used in ventilated and unventilated roof assemblies as a trussing, sub-roof or sheathing membrane
Can be used as a rain-tight sub-roof on sheathing or a pressure-resistant underlay
Two vertically aligned, integrated self-adhesive strips ensure economical and lasting adhesion of longitudinal seams
Length - 50 m
Width - 1,5 m
m² per roll - 75 m²
Packaging (concatenated) - 15 rolls
Weight per m² (approx.) - 15,75 kg
Fire performance - Class E
Resistance to air penetration - 500 cm
sd value, EN 12572 - 0,03 m
Tensile strength longitudinal:, EN 12311-1 - 490 N / 50 mm
Tensile strength transverse:, EN 12311-1 - 460 N / 50 mm
Tensile strength (following artificial ageing) longitudinal, EN 12311-1 - 460 N / 50 mm
Tensile strength (following artificial ageing) transverse, EN 12311-1 - 430 N / 50 mm
Elongation, longitudinal, EN 12311-1 - 45 %
Elongation, transverse, EN 12311-1 - 70 %
Elongation, longitudinal (following artificial ageing), EN 12311-1 - 40 %
Elongation, transverse (following artificial ageing), EN 12311-1 - 60 %
Tear resistance (nail shank) longitudinal , EN 12310-1 - 500 N
Tear resistance (nail shank) transverse , EN 12310-1 - 450 N
Thermal stability - -40°C bis +90°C
UV resistance - At most 16 weeks
Outdoor exposure period - At most 4 weeks
ZVDH classification sub-roof membranes - UDB-A
ZVDH classification trussing membranes - USB-A
