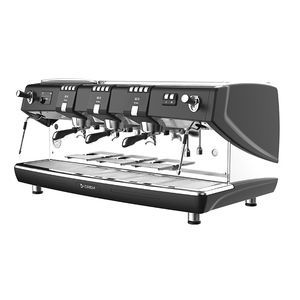

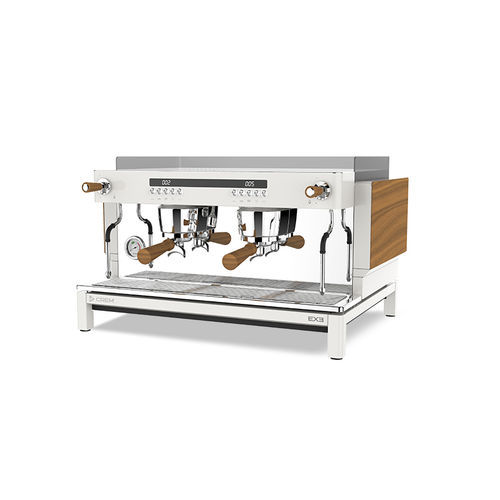

Espresso coffee machine EX3

for coffee beanscommercialfor bar

Product overview
The EX3 is a compact, modular espresso machine designed for businesses with professional espresso needs. Configurable from a single-group Mini to a high-capacity 3-group variant, the EX3 supports customization of external finishes and technical options to adapt to cafés, catering outlets and coffee shop chains.

Highlights

• Modularity: adaptable configuration from Mini 1-group to 3-group to match output requirements
• Contemporary design: stylized lines for a modern counter presence
• Ergonomics: layout and controls optimised for barista workflow
• Compact footprint: balanced dimensions for serviceability and space optimisation

Main USP's

• Half-turn rotary taps
• Pressure switch control
• PID control available on display versions
• Built-in rotary pump
• Thermobrew group for improved thermal stability (new)
• Smart Boiler Filling — intelligent boiler filling system (new)
• Pre-infusion chamber group head
• Volumetric dosing via 5-key keypad
• Group flush button
• 60 mm single pressure gauge
• Group automatic cleaning cycle
• Standard exterior colours: White, Black

Options & Extras

• Keypad: control or display (PID controlled)
• Group height: standard or take-away (high group)
• Pressure gauge: single or double
• Steam/levers and hot-water controls: black, white or wooden finishes
• Improved Cool Touch Pro steam wands (new)
• SmartSteam option
• Body covers: oak, walnut, brushed aluminium
• Barista lights
• High feet or hidden feet
• IsoBoiler Eco Tech — reduces heat loss and saves energy (new)

Technical specifications

• Product family / model: EX3
• Available configurations: Mini 1-group up to 3-group
• Modular design enabling external and technical customization
• Control options: keypad control or display with PID
• Dosing: volumetric dosing via 5 keypad buttons
• Thermal features: Thermobrew group for higher thermal stability; IsoBoiler Eco Tech to reduce heat loss
• Water management: Smart Boiler Filling (intelligent filling system)
• Pre-infusion: pre-infusion chamber group head
• Pumps: built-in rotary pump
• Steam: improved Cool Touch Pro steam wands; SmartSteam option
• Tap controls: half-turn rotary taps; steam/levers and hot-water controls in multiple finishes
• Service & cleaning: group automatic cleaning cycle; group flush button
• Instrumentation: 60 mm single pressure gauge (double gauge optional)
• Physical options: group height standard or take-away (high group); body covers in oak, walnut or brushed aluminium; barista lights; high or hidden feet
• Standard exterior colours: White, Black
