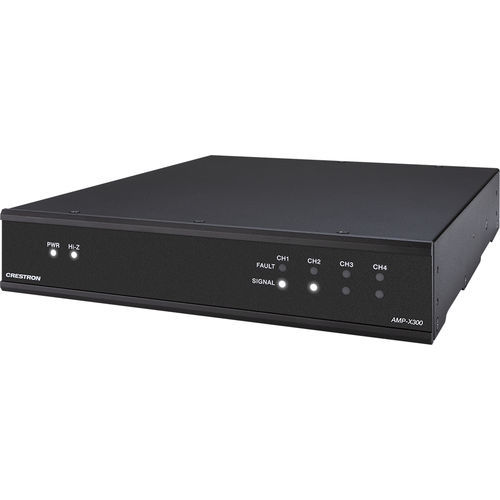

Audio amplifier AMP-X300

The AMP-X300 provides a professional amplifier solution for commercial applications that saves energy, space, and money. The modular design is easy to configure and ships with everything required to enable surface mounting, rack mounting, and ganging multiple units together. The Crestron® AMP-X300 is a high performance, space saving, energy efficient, professional grade amplifier solution that is totally configurable, yet simple to use. Whether you need a stereo amp that mounts on a wall or under a table, or a multichannel rack mount amp with multiple output types and power levels, the AMP-X300 is simple to specify and install in any configuration. LoZ (4/8 Ω) and Hi-Z (70V or 100V) Output The AMP-X300 is a 4-channel amplifier (up to 75 W per channel) which can also be configured for 3-channel bridged operation (up to 75 W per single ended channel and up to 150 W for the bridged channel), or 2-channel bridged operation (up to 150 W per channel), or 1 channel bridged operation (up to 300 W), with a choice of “LoZ” outputs to drive 4- or 8‑Ω speakers, or “Hi-Z” outputs to drive a distributed speaker system (70V or 100V). Balanced and unbalanced inputs are provided for connection to two stereo or four mono source(s) via detachable terminal blocks or RCA connectors. The AMP-X300 is engineered to deliver exceptional performance and reliability with low distortion, low noise, and high power headroom. Advanced Class D technology maximizes efficiency to reduce power consumption and heat dissipation. An internal universal power supply ensures consistent performance at varying line voltages.
