Polyester expansion joint AFW SERIES

aluminumcoatingfloor

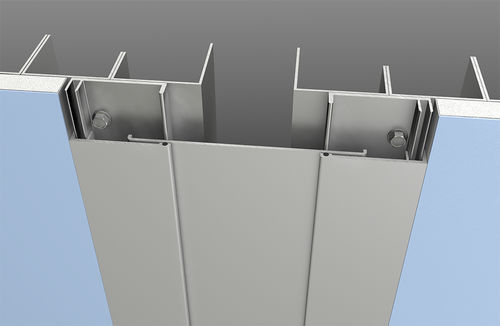

Our range of metal wall covers for interior applications have been designed as matching counterparts to our floor expansion joint covers. Simple and quick to install we offer surface mounted options as well as recess mounted options for a flush finish. Covers are supplied clear anodised as standard, but can be powder coated to match the adjacent wall finish. Recess mounted aluminium wall and ceiling covers for interior applications where low maintenance or tamper-resistance are required. Designed especially to achieve flush finishes next to ceramic tiles, stone or plasterboard walls. The exterior covers clip onto the bottom side frames and provide a flush and tamperproof finish without any visible fixings. Joint Width: up to 100mm Horizontal: up to ±75mm Vertical: up to ±3mm Lateral: ∞ (Infinite) Aluminium sections: exposed sections are supplied in a natural anodised finish as standard, or can be polyester powder coated (subject to minimum quantity). All other sections are mill finished as standard. Fixings (by others) to suit substrate at 450mm centres. Note: Frames are not supplied pre-drilled. Aluminium sections: 3m
