EPDM joint cover HB SERIES

extruded rubberepoxyfor expansion joints

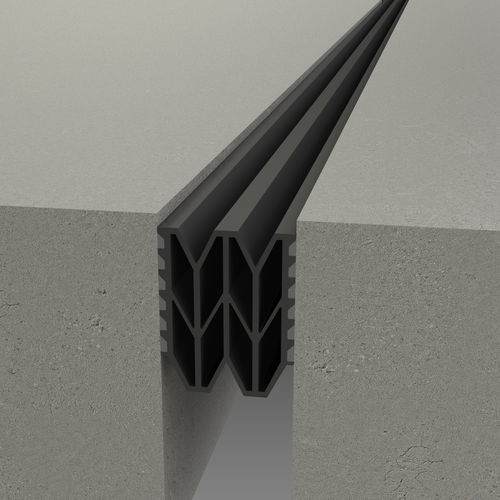

This one-piece extruded EPDM seal creates a watertight seal when used with high-strength epoxy adhesive. The serrated edges create epoxy reservoirs and improve adhesion to joint walls. The closed cell design allows the system to achieve ± 50% movement capability. Series Details Joint Width: up to 100mm Horizontal: up to ±50mm Vertical: up to ±10mm Lateral: up to ±15mm Fixings Installed using high-strength epoxy adhesive (supplied by CS). Note: The standard adhesive used with HB models is not compatible with bituminous finishes, such as asphalt. Please contact us for alternative solutions. Note: To ensure successful installation of the system, the substrate temperature at the time of installation should be 5°C or above. Stock Lengths Supplied cut to suit from [max] 7.5m or 15m rolls.
