Rubber joint cover RFP SERIES

EPDMaluminiumfor expansion joints

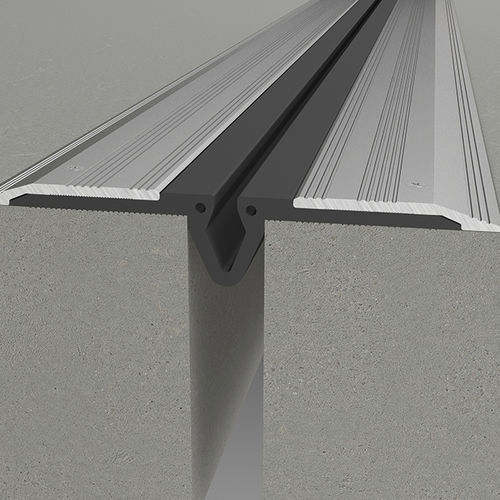

The RFP Series is a simple to install, gasketed parking joint cover featuring aluminium cover plates over the rubber wings. Economical, and highly effective, the RFP allows structural movement within busy car parks, without the risk of joint cover damage. Available in 2 models for 30mm and 50mm joints. Fixings The cover is installed using adhesive (supplied by CS) to adhere the gasket to the substrate, and mechanical fixings (by others) securing the aluminium profiles to the floor: Floor: fixings (by others) to suit substrate at 330mm centres and to achieve minimum 40mm embedment Wall: fixings (by others) to suit substrate at 330mm centres. Note: frames are supplied pre-drilled
