Polyethylene joint cover KB SERIES

aluminumfor expansion joints

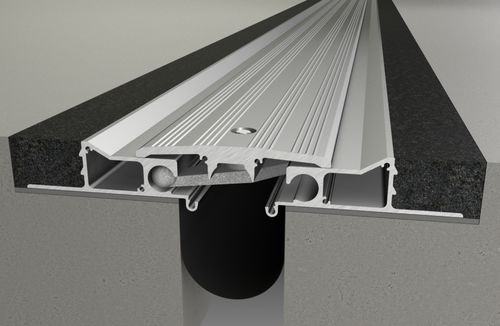

A collection of all metal expansion joint covers designed specifically for parking structures. Featuring a patented turnbar housing which reduces lateral load damage & a specially designed centre plate to offer the system maximum strength. KB joints are supplied with a Moisture Barrier as standard Series Details: Joint Width: up to 200mm Horizontal: up to +140mm & -125mm Vertical: up to ±25mm Lateral: up to ±100mm Load Capability: 1000kg point load Fixings Floor: fixings (by others) to suit substrate at 450mm centres and to achieve minimum 40mm embedment Wall: fixings (by others) to suit substrate at 450mm centres Note: frames are not supplied pre-drilled Stock Lengths Aluminium sections: 3m Moisture Barrier: supplied cut to suit from [max] 30m rolls
