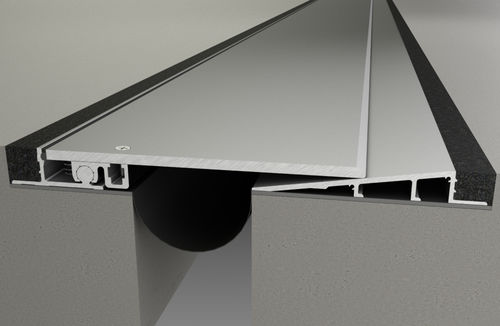

Aluminum joint cover PTC SERIES

polyethylene

A heavy duty, seismic cover for large expansion joints of up to 250mm. The specially designed damper system allows the central cover plate to move freely & prevents the cover plate from ‘flapping’ noisily under dynamic traffic loads. Supplied with moisture barrier as standard. Series Details Joint Width: up to 250mm Horizontal: up to ±125mm Vertical: up to ±25mm Lateral: up to ±50mm Load Capability: 1000kg point load Fixings Floor: fixings (by others) to suit substrate at 450mm centres and to achieve minimum 40mm embedment Wall: fixings (by others) to suit substrate at 450mm centres Note: frames are not supplied pre-drilled Stock Lengths Aluminium sections: 3m Moisture Barrier: supplied cut to suit from [max] 30m rolls
