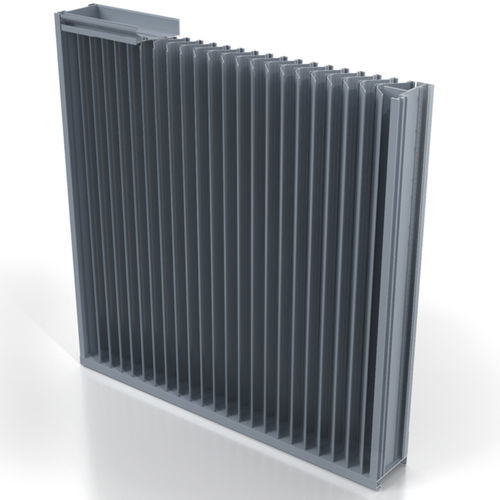

Aluminium ventilation grill RS-5900
rectangularsquareexterior

aluminium ventilation grill
aluminium ventilation grill
Add to favorites
Compare this product

Go to the CS Construction Specialties website for more information

Characteristics

Material
aluminium
Shape
rectangular, square
Interior/exterior use
exterior
Market
commercial, home, industrial
Applications
for facade, wall-mounted
Color
anthracite
Width

1 m
(3'03" )

Length

1 m
(3'03" )

Description

High performing louvres with vertical blades and visible mullions, offering excellent protection against wind-driven rain penetration and very good airflow. KEY FEATURES Blade Orientation: Vertical Mullion Type: Visible Louvre Depth: 130mm Blade Pitch: 38mm Weight: 26kg/m2 based on a 2m x 2m module size PERFORMANCE SUMMARY Rain Penetration Class: A up to 3.5m/s Airflow Class: 2 (entry & discharge) Airflow Coefficient Ce (entry): 0.342 Airflow Coefficient Cd (discharge): 0.352 K factor (entry / discharge): 8.550 / 8.071 OPTIONAL EXTRAS Glazing frame Head / cill / jamb cover plates Blanking panels (single skin or insulated) Bird / vermin guards, insect mesh Louvred doors Dampers ADDITIONAL SECURITY OPTIONS Blast Resistant Option: Can withstand up to 12.6psi blast pressure at an impulse of 77.8 psi-msec
