Galvanised steel fastening system TER14 series

for curtain wallfor partition wallfor masonry

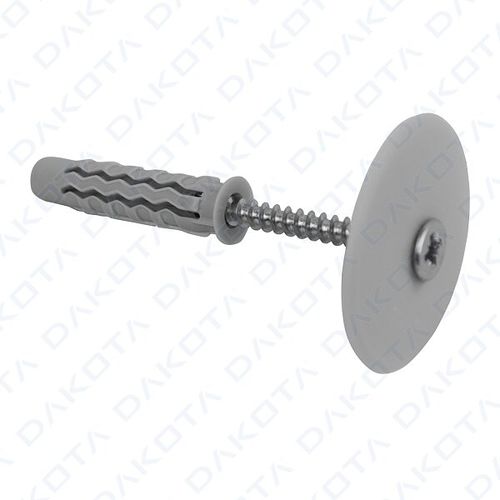

The LOW THICKNESS FIXING KIT FOR STRUCTURAL REINFORCEMENT is a fastening system used in systems for securing concrete slabs. The lowered geometry of the washer (5 mm) allows its application even when low thickness finishing layers are foreseen. USE The LOW THICKNESS FIXING KIT FOR STRUCTURAL REINFORCEMENT consists of a Ø 50 mm PA6 disc with a thickness of 5 mm, a galvanised steel screw with countersunk head and cross cut, and a four-sector nylon PA6 plug. The system is used to fasten Dakota TITANET type fibreglass nets to the floor slab for securing against piñata bursting or for its restoration. The intervention can be completed by applying finishing layers such as plaster or plasterboard or it can be left exposed. The LOW THICKNESS FIXING KIT FOR STRUCTURAL REINFORCEMENT can also be used to fix the mesh to the brickwork in anti-liftoff interventions on curtain walls and partitions.
