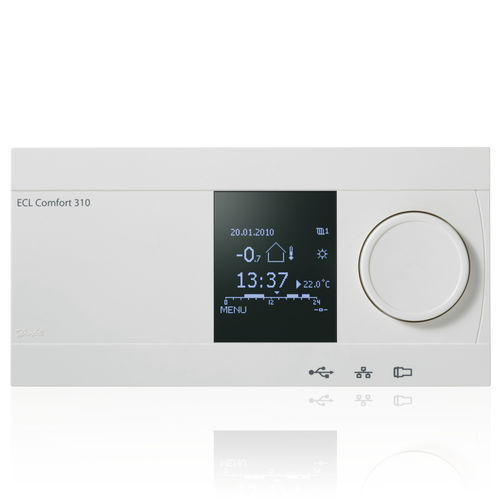

Home automation system temperature controller ECL COMFORT 310

room

Gross weight - 0.68 kg Net weight - 0.48 kg Actuator output load [VA] - 15 VA Ambient humidity [% RH] [Max] - 65 % RH Ambient temperature [°C] [Max] - 55 °C Ambient temperature [°C] [Min] - 0 °C Application source - By ECL application key Approval standard - CE marking EMC-Directive: 2004/108/EC Immunity: EN 61000-6-1:2007 Emission: EN 61000-6-3:2007 LVD directive 2006/95/EC EN 60730 Communications - ECL 485 Bus (non-galvanically isolated) M-Bus Modbus (galvanically isolated) Description - ECL COMFORT 310/230 V DHW functions - Anti-bacteria program Auto-tunning Return temperature influence Digital inputs type - 12 V pull-up possible Display type - LCD dot matrix General functions - Alarm functions Circulation pump exercise Control valve exercise External override facility Frost protection Holiday program Master - Slave network Motor protection Remote control connection Visible temperature logging Grade of enclosure - IP41 Heat curve setting for heating circuit - 6 points Slope Number of 3-point motor control outputs - 3 Number of comfort periods per day - 3 Number of DHW circuits - 2 Number of DHW storage tank circuits - 1 Number of digital inputs - 4 Number of heating circuits - 3 Number of pumps - 5 Number of relay outputs - 6 Number of Sensor inputs - 10 pc Power consumption [W] - 5 W Product group - Electronic controllers Relay output inductive load [A] - 2 A Relay output ohmic load [A] - 4 A Relay output voltage [V] AC - 230 V Sensor cable length [mm] - 200 mm Storage temperature [°C] [Max] - 70 °C Storage temperature [°C] [Min] - -40 °C Supply voltage [V] AC - 230 V
