Home automation system temperature controller ECL COMFORT 296

room

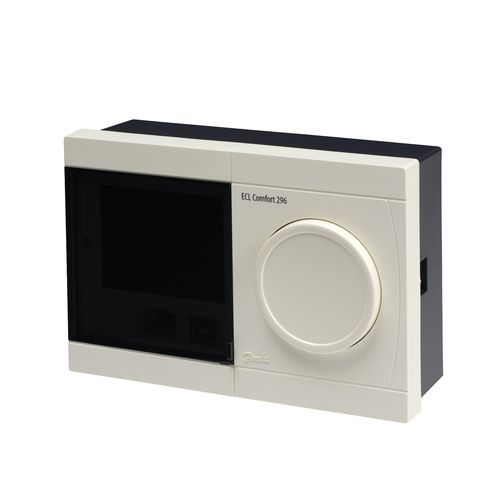

Gross weight - 0.6 kg Net weight - 0.6 kg The ECL Comfort 296 is an electronic weather compensated temperature controller in the ECL Comfort controller family for use in district heating, central heating, cooling and ventilation systems. Energy savings can be achieved by correct control of the flow temperature in heating and cooling systems. The controller has 2 control circuits and one additional thermostatic function. The weather compensation function in the ECL Comfort controllers measures the outdoor temperature and controls the flow temperature to the heating system accordingly. In case it is available it also controls the domestic hotwater installation. The weather compensated heating system increases the comfort level and saves energy. The ECL Comfort 296 controller is configured with a selected application by means of an ECL Application Key. Features & bene ts Designed for comfortable temperatures and optimum energy consumption Integrated communication interfaces Modbus RS485 for longer distances M-bus master dedicated for heat meters Modbus TCP Connection to Leanheat® Monitor – easy to install, access and adjust / monitor
