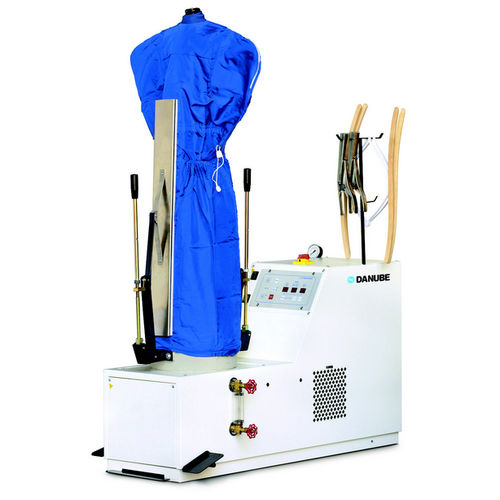

Clothing form finisher MF

for shirtsfor trousers

This industrial form finisher has been designed exclusively to finish coats, jackets, dresses... The work cycles are fully automated with the control of steam and drying times using an electronic card and digital display. Both the shoulder width and cover are adjustable. The support for the cover has the corresponding controls and rotates 360°. The operating cycles are controlled using an electronic card. Below, we will explain in detail the features of the different models of industrial form finishers that you will find in our catalogue. MF / Model without boiler Model without boiler, for connection to an external steam supply. It requires a steam inlet and return. MF-C Self-contained It incorporates an 18 litre boiler with electric power. Automatic pressure control (4.5 bar) Automatic water supply. Form finisher for shirts washed using water or dry cleaned, and jackets. It does not have a boiler and is prepared for connection to steam and compressed air. Side control panel for pneumatic functions, suction control and switching on and off. Pneumatically operated (stretcher for the sleeves, back, front and lower part). Special stretching system at the bottom for long and short garments, operated by photocell. Dummy with pneumatically adjustable height. Manually adjustable shoulder width. Pneumatic device to regulate the air of the fan. Powerful 3CV fan. Telescopic structure with a height of up to 1500 mm. Prepared for connection to steam and compressed air. 350° rotating structure and locking central panel to hold the garment. Sensors to capture the length of the garment. Double anti-stretch system in length (warp) and width (weft). Adjustable shoulder unit.
