Design software DDS-CAD MECHANICALdrawingcalculationBIM (Building Information Modeling)

design software
design software
design software
Add to favorites
Compare this product
indicative price


design, drawing, calculation, BIM (Building Information Modeling)
for heating systems
Other characteristics
3D, 2D

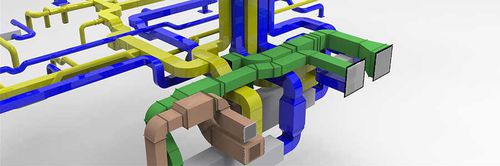

Software solution for ventilation systems DDS-CAD Mechanical is specific for the design of ventilation systems and air conditioning. The module is suitable for designing both large industrial and small balanced ventilation systems for residential applications. Design intelligent ventilation systems and use automatic dimensioning functions based on pressure loss, flow rate and sound. Achieve regulated balance ventilation through adjustable valves and air vents. If desired, you can supplement the DDS-CAD Mechanical module with other modules and configurations for the MEP sector. This allows you to put together a multidisciplinary solution. As a user you only invest in the functionalities that you need. DDS-CAD is fully developed and managed by DDS. This means that DDS-CAD is not dependent on third-party solutions such as AutoCAD and Revit. You do not have to make multiple investments, but you save with DDS-CAD by investing in one solution. “To provide the best possible solution for installation technology, we continuously provide DDS-CAD with even more intelligence. Thanks to smart innovations and automated functions, DDS-CAD will radically simplify your daily drawing, design and documentation tasks.” Mark Bouten, International Sales Manager - Data Design System Standard in DDS-CAD Mechanical Design ventilation systems Perform integrated calculations Create designs, reports and parts lists Detect and prevent design errors Save time with many automatic functions
