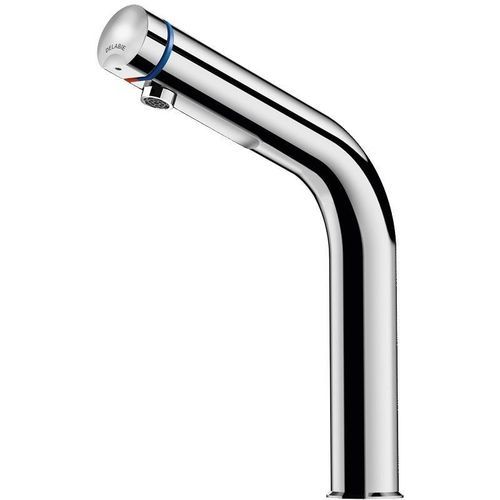

Washbasin mixer tap TEMPOMIX 3

deck mountedself-closingmechanical

DESCRIPTION
Deck-mounted single-control time-flow basin mixer. Soft-touch push-button operation with integrated temperature control in the handle. Preset time flow ~7 seconds. Preset flow rate 3 lpm at 3 bar, adjustable 3–6 lpm. Tamperproof, scale-resistant flow straightener. Chrome-plated stainless steel body, 255 mm overall height for deck-mount basins. F3/8" PEX flexibles with filters and non-return valves. Fixing reinforced by back-nut for anti-vandal installation. Adjustable maximum temperature limiter. Designed for accessibility (suitable for people with reduced mobility). 30-year warranty.

ADVANTAGES

• Exceptional water savings: up to 85%
• Soft-touch push-button operation
• Reinforced anti-vandal fixing with back-nut
• Clean, contemporary design suited to architectural projects

TECHNICAL CHARACTERISTICS
Connector: F3/8"
Technology: Time flow
Drop height: 250 mm
Flow rate: 3 lpm (preset) – adjustable 3–6 lpm
Finish: Chrome-plated stainless steel body
Certificates: Belgaqua; DoP; ACS; DVGW
Warranty: 30 years

CHARACTERISTICS / TECHNICAL SPECIFICATIONS

• Reference: 794120
• Model name: TEMPOMIX 3
• Mounting: Deck-mounted (basin on counter)
• Control: Single control, push-button
• Operation: Soft-touch
• Time flow duration (preset): ~7 seconds
• Flow rate (preset): 3 lpm at 3 bar (adjustable 3–6 lpm)
• Connector type: F3/8" PEX flexibles with filters and non-return valves
• Overall height: 255 mm (deck-mounting)
• Drop height: 250 mm
• Flow straightener: Tamperproof, scale-resistant
• Temperature: Adjustable maximum temperature limiter
• Accessibility: Suitable for people with reduced mobility
• Body material/finish: Chrome-plated stainless steel
• Fixing: Reinforced by back-nut (anti-vandal)
• Certificates: Belgaqua; DoP; ACS; DVGW
• Warranty: 30 years
