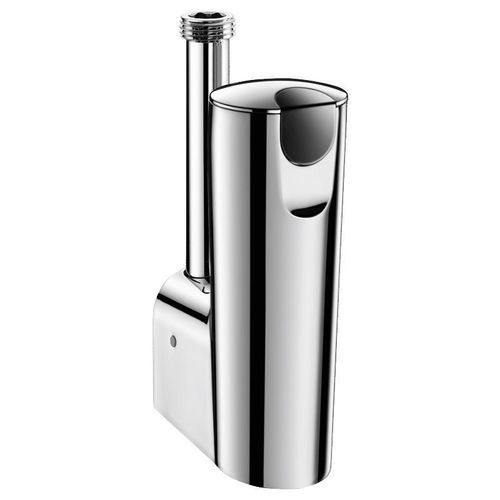

Automatic flushing valve robinet TEMPOMATIC 4

infraredimpact-resistant

DESCRIPTION
Exposed electronic urinal valve with integrated CR123 3V lithium batteries (6 V supply). Reference 479410. For wall-mounted exposed installation. Reduced-stagnation solenoid valve and electronic unit integrated into the valve body. Shockproof infrared presence detection sensor. Detection delay: 10 seconds. Three programmes with rinsing volume adjustable according to urinal type. High-frequency mode (DELABIE): short rinse after each user and complementary rinse after busy periods. Hygienic duty flush every 24 hours after last use to prevent siphon drying. Compatible with rainwater. Flow rate 0.15 L/sec at 3 bar, adjustable. Integrated stopcock and flow rate adjuster. One-piece chrome-plated metal body. Connection M1/2". Straight version for in-line supply; outlet M1/2" with 35 mm gap from wall. Suitable for people with reduced mobility. 30-year warranty. Ideal for renovation: replaces older time-flow urinal fittings easily.

ADVANTAGES

• Total hygiene: no manual contact
• High-frequency mode for water savings and optimized rinsing
• Batteries integrated into the valve body (CR123 3V)
• Hygienic duty flush (periodic flush)

SPECIFICATIONS / TECHNICAL DATA

• Reference: 479410
• Power supply: 6 V (integrated CR123 3V lithium batteries)
• Connection: M1/2"
• Technology: Electronic solenoid valve
• Height: 155 mm
• Depth: 85 mm
• Flow rate: 0.15 L/sec at 3 bar (adjustable)
• Detection delay: 10 seconds
• Programmes: 3 selectable rinsing programmes (adjustable volume)
• High-frequency mode: short rinse after each user; complementary rinse after busy periods
• Hygienic duty flush: automatic every 24 hours after last use
• Reduced-stagnation solenoid valve and electronic unit integrated into valve body
• Shockproof infrared presence sensor
• Integrated stopcock and flow rate adjuster
• Body: one-piece chrome-plated metal
• Installation: exposed wall-mounted, straight for in-line supply; outlet M1/2" with 35 mm wall gap
• Compatible with rainwater
• Accessible: suitable for people with reduced mobility
• Warranty: 30 years
