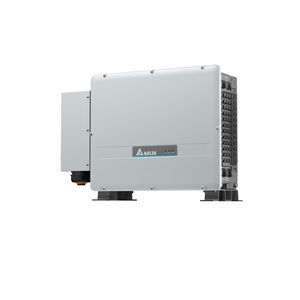

PV inverter M125HV_110 GEN1

string

The M125HV Inverter has a peak efficiency of 99.2% and has built-in and replaceable AC and DC-side Type 2 SPDs (surge protection devices). Type 1 SPDs can be installed optionally. Maximum apparent power 140 kVA / 125 kW active power. Modular fan section with smart fan control gives unit full power operation up to 50°C ambient. Only 3 wires needed for AC connection (IT Mode). Suitable for 600V AC Grid voltage, Al or Cu AC cables are easy to install (multi-conductor cables or single conductor cables thanks to optional AC plate) and within 50mm2 up to 185mm2. 20 pairs of H4 Plus connectors for DC connection with individual string fused inputs and individual current monitoring. 1 MPP tracker with a high operating input voltage up to 1500V. Compatible with Sunspec protocol. Compared to a central inverter, the M125HV inverter will not require additional string combiner boxes. Because of the relatively low weight, pickup trucks and simple lifting devices are sufficient for transport and lifting the unit at the installation site. To avoid negative effects from PID (Potential Induced Degradation) on your solar modules, M125HV features an integrated anti-PID solution. Q at night feature provides reactive power to the grid even outside normal feed-in periods, thereby implementing a healthy system. IV Curve measurements are supplied by the inverter to help in performance analysis of your PV system. Convenient and separate AC compartment with easy access doors make installation easier. Features built-in Type 2 AC and DC SPDs certified to protection class II. Type 1 SPDs can be installed optionally. Chassis is wall-mountable or ground-mountable with protection class IP65.
