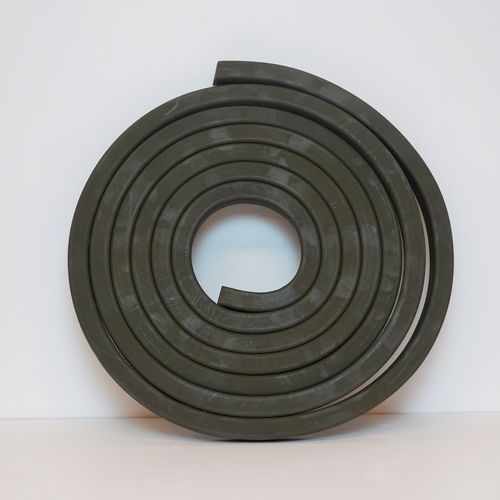

Protection sealing DIAJOINT

for foundationfor concrete structuresroll

Water-stop joint Hydro-expanding bentonite joint for sealing and waterproofing the construction joints of concrete structures. Diajoint is an hydrophilic rubber joint made out of bentonite polymer, to be used as water stopper for concrete casting joints of concrete structures. The joint is composed by 75% of sodic bentonite and 25% of organic binder. Yield – 1.00 m/m = 1.0 ft/ft An overlap of at least 10 cm is recommended. Packaging – 5000 x 30 x 25 mm // 197 x 1.2 x 0.98 in Drying time No need to dry out Appearance: Kerb Expansion in water after 14 days: > 425% Swelling with prevented expansion: 1.43 N/mm2 // 207.4 lb/in2 (psi) Elongation at break: 141 % Maximum deflection: no tearing at an angle of 180° Waterproofing sheets and hydro-expansive kerbs for waterproofing foundation or onto the ground structures Once in contact with the concrete casting, the joint expands its volume, sealing and waterproofing the casting from any infiltrations coming from the outside. It fills completely the small voids or gravel nests that are generally frequent at the bottom of vertical castings.
