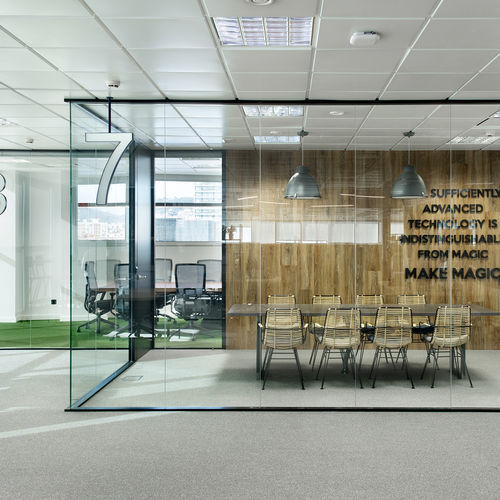

►Office partition composed of extruded aluminium profiles with lacquered or anodised finish.
►General thickness of the partition 80mm. Aluminium plinth profile and top profiles of 24 mm.
►The system allows you to work with 5mm grooves and veneered panel edges or with unedged panels and 24mm aluminium joint covers.
►Double 16mm thick melamine panel with 0.8mm thick ABS veneered edges.
►The profiles are prepared to accept 5, 3+3, 4+4, 5+5 and 6+6 glass.
►The glazing can be double or single. The single glass is centered on the profiles.
►The 5+5 and 6+6 glasses can be mounted “edge-to-edge” with a transparent adhesive profile to join the glasses.
►The melamine doors are 38mm thick. They can be 2030×825, full height or rebated.
►Tempered safety glass doors are 10mm thick.
►The Biglass doors consists of an internal aluminium frame and two 5mm glass sheets with silk-screen printing attached to the profile. The final appearance is a full glass 40mm thick door with aluminum edges in same finish as partition.
►The system incorporates profiles for wall covering of 50mm thickness with the same aesthetics as the office partition.
►Profiles lacquered according to QUALICOAT standard or anodised according to QUALANOD standard.
►Melamine panels in 100% recycled chipboard. Respectful with the environment.
