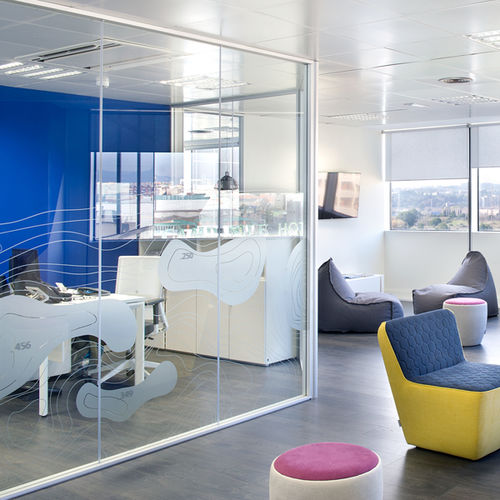

Removable partition NEO 1V

removable partition
removable partition
Add to favorites
Compare this product


glazed, double-glazed, aluminum
transparent, translucent
Technical characteristics
Other characteristics
frameless, custom, with integrated blinds


Main features ►Office partition composed of extruded aluminium profiles with lacquered or anodised finish. ►General thickness of the partition 80mm. Aluminium plinth profile and top profiles of 24 mm. ►The system allows you to work with 5mm grooves and veneered panel edges or with unedged panels and 24mm aluminium joint covers. ►Double 16mm thick melamine panel with 0.8mm thick ABS veneered edges. ►The profiles are prepared to accept 5, 3+3, 4+4, 5+5 and 6+6 glass. ►The glazing can be double or single. The single glass is centered on the profiles. ►The 5+5 and 6+6 glasses can be mounted “edge-to-edge” with a transparent adhesive profile to join the glasses. ►The melamine doors are 38mm thick. They can be 2030×825, full height or rebated. ►Tempered safety glass doors are 10mm thick. ►The Biglass doors consists of an internal aluminium frame and two 5mm glass sheets with silk-screen printing attached to the profile. The final appearance is a full glass 40mm thick door with aluminum edges in same finish as partition. ►The system incorporates profiles for wall covering of 50mm thickness with the same aesthetics as the office partition. ►Profiles lacquered according to QUALICOAT standard or anodised according to QUALANOD standard. ►Melamine panels in 100% recycled chipboard. Respectful with the environment.


No catalogs are available for this product.

See all of DINOR‘s catalogs
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
