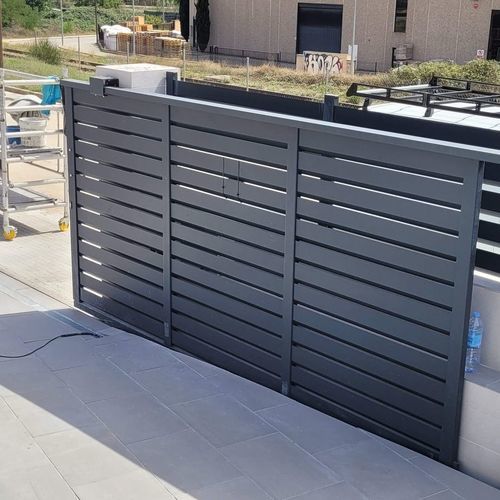

Aluminum garden gate

stainless steelPVCWPC

Overview Doors supplied in kit form for sliding gates and sliding doors, compatible with most fence models. Multiple standard heights available; widths can be manufactured to project requirements. Manual or motorized operation available (motorization optional). Hardware manufactured in Europe. Standard clearance under the door: 52 mm.

Characteristics

• Kit doors compatible with most fence models
• Multiple heights available
• Custom widths to order
• Various fixing systems depending on project
• Manual or motorized opening (optional)
• Hardware manufactured in Europe
• Standard gap under the door: 52 mm

Components

• Closing profiles and door frame in anthracite or white aluminum
• PVC, WPC or aluminum slats depending on the model
• Upper guiding carriage in matching frame color
• Stainless steel handles
• Cylinder lock with 5 keys
• Foam and brushes integrated in the closing profile
• Limit stop
• Various heights available
• Custom width
• Easy assembly and installation

Options

• Omega guide, screwed or recessed
• Frontal or parallel closing profile
• Exterior side: stainless steel handle or none
• Interior side: stainless steel handle or none
• Integrated mailbox (optional)
• Integrated pedestrian opening door (optional)
• Opening automation (brushless)

Available models / Slider captions

• Horizon 010
• Horizon 020 aluminum
• Zeus (white PVC)
• Helios (grey PVC)
• Nature 010 (walnut)

Sliding door heights (mm) — table 1 Sunset / Antigona PVC slats | Achilles / Horizon 010 PVC or ALU slats | Achilles / Horizon 020 PVC or ALU slats | Achilles / Horizon 050 PVC or ALU slats | Achilles / Horizon 100 PVC or ALU slats
1150 mm | 1110 mm | 1200 mm | 1170 mm | 1320 mm
1253 mm | 1220 mm | 1320 mm | 1320 mm | 1520 mm
1356 mm | 1330 mm | 1440 mm | 1470 mm | 1720 mm
1459 mm | 1440 mm | 1560 mm | 1620 mm | 1920 mm
1562 mm | 1550 mm | 1680 mm | 1770 mm | 2120 mm
1665 mm | 1660 mm | 1800 mm | 1920 mm |
1768 mm | 1770 mm | 1920 mm | 2070 mm |
1871 mm | 1880 mm | 2040 mm | |
1974 mm | 1990 mm | 2160 mm | |
2077 mm | 2100 mm | | |

Sliding door heights (mm) — table 2 Achilles / Horizon 150 PVC or ALU slats | Achilles / Horizon 200 PVC or ALU slats | Achilles / Horizon 250 PVC or ALU slats | Helios (PVC slats) | Helios Zero (PVC slats)
1370 mm | 1320 mm | 1520 mm | 1185 mm | 1307 mm
1620 mm | 1620 mm | 1870 mm | 1331 mm | 1421 mm
1870 mm | 1920 mm | | 1477 mm | 1535 mm
2120 mm | | | 1623 mm | 1649 mm
| | | 1769 mm | 1763 mm
| | | 1915 mm | 1877 mm
| | | 2061 mm | 1991 mm
| | | 2207 mm | 2105 mm

Sliding door heights (mm) — table 3 Scala / Scala Cross PVC or ALU slats | Apollo (ALU slats) | Nature 010 (WPC slats) | Nature 020 (WPC slats) | Nature Zero (WPC slats)
1120 mm | 1214 mm | 1273 mm | 1194 mm | 1193 mm
1220 mm | 1347 mm | 1422 mm | 1353 mm | 1332 mm
1320 mm | 1480 mm | 1571 mm | 1512 mm | 1471 mm
1420 mm | 1613 mm | 1720 mm | 1671 mm | 1610 mm
1520 mm | 1746 mm | 1869 mm | 1830 mm | 1749 mm
1620 mm | 1879 mm | 2018 mm | 1989 mm | 1888 mm
1720 mm | 2012 mm | 2167 mm | 2148 mm | 2027 mm
1820 mm | 2145 mm | | | 2166 mm
1920 mm | | | |
2020 mm | | | |
2120 mm | | | |

Technical specifications

• Standard gap under the door: 52 mm
• Manual or motorized opening available (motorization optional, brushless automation available)
• Closing profiles and door frame in anthracite or white aluminum
• Slat materials: PVC, WPC or aluminum (depends on model)
• Upper guiding carriage color matches frame
• Stainless steel handles; cylinder lock with 5 keys
• Foam and brushes integrated in the closing profile; limit stop included
• Omega guide: screwed or recessed; frontal or parallel closing profile options
• Optional integrated mailbox or pedestrian opening door
• Various heights available and custom widths; easy assembly and installation
• Hardware manufactured in Europe
