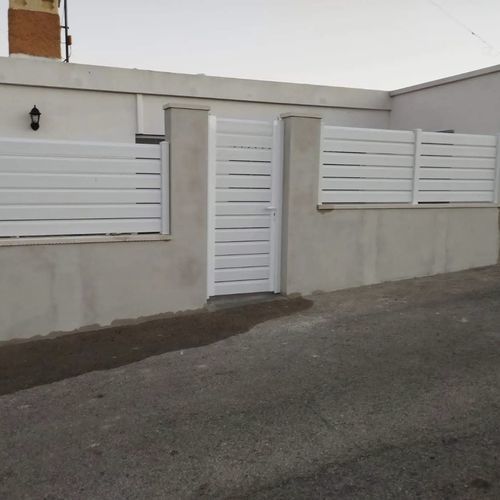

Aluminum garden gate

PVC

Overview

• 1-leaf pedestrian gates, available for almost all fence models.
• Various heights available. Custom width.
• Various fixing systems to adapt to any project.
• Manual opening or with intercom. Motorized opening available as an option.
• European-made hardware. Low standard threshold: 20 mm (modifiable if necessary).
• With wall posts and full-height cover for total privacy.

Displayed models / finishes (examples shown on the page)

• Helios PVC (white, grey)
• Nature 010 (WPC, anthracite, nogal)
• Horizon 010 / 020 (PVC or aluminium)
• Apollo (aluminium)
• Zeus PVC (white)

Components

• Fixed side posts and door frame in anthracite or white aluminium.
• PVC, WPC or aluminium slats, depending on the model.
• Pre-assembled aluminium side hinges, same colour as the frame, adjustable in 3 directions.
• Aluminium handles and rosettes in the same colour as the frame.
• Cylinder with 5 keys.
• Various heights available. Custom width. Easy installation.

Options

• Electric intercom.
• Exterior side options: handle, knob or nothing.
• Interior side options: handle, knob or nothing.
• Door stop, closing spring, integrated mailbox, opening automation (motor).

Standard pedestrian door heights — table 1
Sunset / Antigona Lamas PVC is GOING | Achilles / Horizon 010 PVC or ALU slats | Achilles / Horizon 020 PVC or ALU slats | Achilles / Horizon 050 PVC or ALU slats | Achilles / Horizon 100 PVC or ALU Slats
1150 mm | 1110 mm | 1200 mm | 1170 mm | 1320 mm
1253 mm | 1220 mm | 1320 mm | 1320 mm | 1520 mm
1356 mm | 1330 mm | 1440 mm | 1470 mm | 1720 mm
1459 mm | 1440 mm | 1560 mm | 1620 mm | 1920 mm
1562 mm | 1550 mm | 1680 mm | 1770 mm | 2120 mm
1665 mm | 1660 mm | 1800 mm | 1920 mm |
1768 mm | 1770 mm | 1920 mm | 2070 mm |
1871 mm | 1880 mm | 2040 mm | |
1974 mm | 1990 mm | 2160 mm | |
2077 mm | 2100 mm | | |

Standard pedestrian door heights — table 2
Achilles / Horizon 150 PVC or ALU slats | Achilles / Horizon 200 PVC or ALU slats | Achilles / Horizon 250 PVC or ALU slats | Helios (Lamas PVC) | Helios Zero (Lamas PVC)
1370 mm | 1320 mm | 1520 mm | 1185 mm | 1307 mm
1620 mm | 1620 mm | 1870 mm | 1331 mm | 1421 mm
1870 mm | 1920 mm | | 1477 mm | 1535 mm
2120 mm | | | 1623 mm | 1649 mm
| | | 1769 mm | 1763 mm
| | | 1915 mm | 1877 mm
| | | 2061 mm | 1991 mm
| | | 2207 mm | 2105 mm

Standard pedestrian door heights — table 3
Scala / Scala Cross Lamas PVC o ALU | Apollo (Lamas ALU) | Nature 010 (Lamas WPC) | Nature 020 (Lamas WPC) | Nature Zero (Lamas WPC)
1120 mm | 1214 mm | 1273 mm | 1194 mm | 1193 mm
1220 mm | 1347 mm | 1422 mm | 1353 mm | 1332 mm
1320 mm | 1480 mm | 1571 mm | 1512 mm | 1471 mm
1420 mm | 1613 mm | 1720 mm | 1671 mm | 1610 mm
1520 mm | 1746 mm | 1869 mm | 1830 mm | 1749 mm
1620 mm | 1879 mm | 2018 mm | 1989 mm | 1888 mm
1720 mm | 2012 mm | 2167 mm | 2148 mm | 2027 mm
1820 mm | 2145 mm | | | 2166 mm
1920 mm | | | |
2020 mm | | | |
2120 mm | | | |

Characteristics / technical specifications

• Gate type: 1-leaf pedestrian gates compatible with multiple fence series.
• Frame materials: aluminium (white or anthracite).
• Slat materials: PVC, WPC or aluminium depending on model.
• Hinges: pre-assembled aluminium side hinges, adjustable in 3 directions.
• Hardware: aluminium handles and rosettes in matching colour; cylinder with 5 keys.
• Opening: manual standard; motorized opening available as an option; low threshold 20 mm (modifiable).
• Customization: multiple standard heights (detailed above) and custom widths available.
• Extras: various fixing systems, door stop, closing spring, integrated mailbox, intercom and automation options.
• Installation: designed for easy installation; compatible with wall posts and full-height privacy covers.
