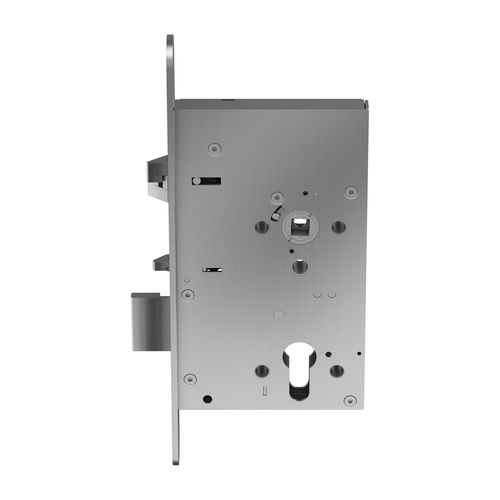

Mechanical lock SVP 6000

with handledoor1 point

SVP locks automatically lock doors after each closing cycle – offering the ultimate in both convenience and security. The automatic deadbolt projection of 20mm ensures that the door is always securely locked. The additional anti-thrust engagement of the clawbolt latch provides two-point locking for enhanced security. Meanwhile, the emergency escape function means that the door can be opened at any time in the exit direction by simply operating the lever handle or panic bar. Mechanical opening from the outside remains possible at any time via a key to unlock the europrofile or round cylinder insert. • Access Controlled external lever handle • Emergency escape/panic function in accordance with BS EN 179 & BS EN 1125 • Certified in accordance with BS EN 14846 • CERTIFIRE approved • Universal trip latch • Automatic relocking action • Models: Fail-secure / Fail-safe, 12V / 24V DC • With feedback contacts to signal door status • For narrow stile and timber doors The SVP 6000 emergency escape lock is particularly suitable for entrance or external doors that need to be permanently accessed from the inside but rendered accessible from the outside by authorized persons only. Thanks to the emergency escape function, the door can be readily opened by simply operating the lever handle or panic bar, while the automatic relocking mechanism ensures secure lock re-engagement once the door has closed.
