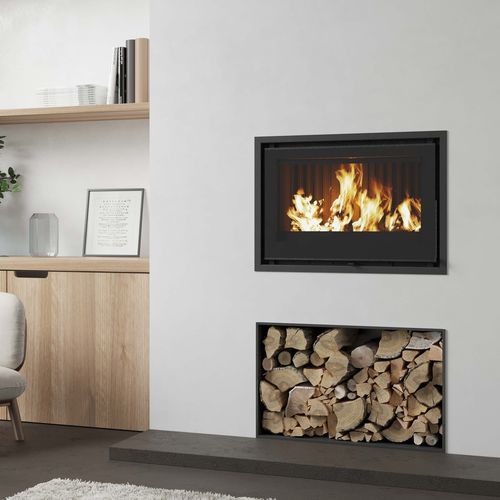

Wood-burning fireplace insert VISTA700I

cast ironmetalnatural convection

A Vista i built-in fireplace uses today’s most refined combustion techniques, to transform any existing open fireplace into a more environmentally friendly closed fireplace. For the interior lining you have the choice between slat-shaped cast iron or vermiculite stones. The finishing touch is a 4 mm or 25 mm frame. Connection diameter (mm) : 150 Height of connection (mm) : 420 Connection place : on top or rear + possible to convert in 45°, Top Capacity (m³) : 200 Dust particles (mg/Nm³) : 16, 19 Efficiency : 78,00%, 83,00% CO emissions (13% O2) : 0,08, 0,1 Combustion floor : Refractory bottom Minimum pression : 12 Flue gas volume (g/s) : 7,1, 9,1 Log length (cm) : 50 Second combustion : Yes Ash tray : Inclusive Maximum drain (Pa) : 2 Heat drain diameter : 125 Ventilator : Inclusive Ventilator volume (dB) : 250 Volt (V) : 230 stufe2blimsch : J Temperature increase measured in the measurement section (K) : 267 Nox emissions (13%O2 at nominal heat output - mg/Nm³) : 110 Seasonal space heating energy efficiency (%) : 67,25 Type of heat output/room temperature control : single stage heat output, no room temperature control
