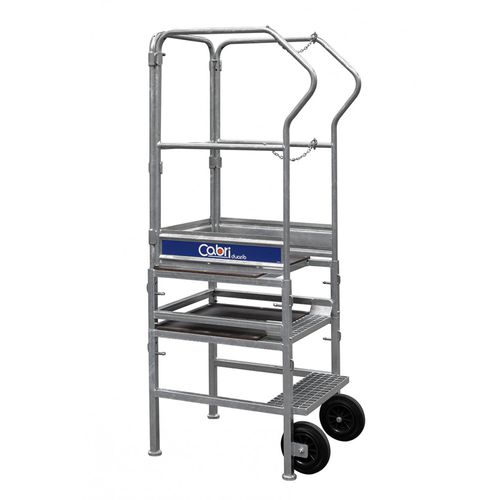

Work platform CABRI

for construction

KEY FEATURES A new kind of LIRP, designed to withstand the harshest worksite conditions. High-standard workmanship. Max. work height: 2.80 m. Safety: 2 2 models, with or without extension. Sturdy steel design. Free-standing. Can be rolled on staircaises. Easy, tool-free installation. Very easy to move. Can fit in anywhere on the site. Ideal for working in corners. Can pass over obstacles. SPECIFICATIONS Platform with extension. Galvanized steel. Decree 2004-924 / NFP-93.353 (LIRP) standard. Cabri Work height: 2.55 m Platform height: 0.55 m. Weight: 27 kg. Cabri (with its extension) Work height without extension: 2.55 m Work height with extension installed: 2.80 m Weight 39 kg. Free-standing. ŸCan be dismantled. Protection by handrails + straps. Floor space: 0.78 x 0.57 m Non-slip platform: 0,52 x 0.48 m. Toe-board height 150 mm. Load capacity: 150 kg. Steel non-slip rungs. Non-marking Ø 200 mm wheels. Assembly type: welded. Made in France. TECHNICAL CHARACTERISTICS • Galvanized steel. • Assembly welded. • Large non-slip rungs, 160 mm. • Non-slip platform 0,50 x 0,48 m. • Load capacity 150 kg. • Fits through doors 0,63 m in width. • Easy to move on staircases. No suitable for use on staircases. • Rear clearance height 0,51 m. Can be set-up over toilets or other obstacles on the work site. • Transport wheels Ø 200 mm. Non-marking.
