Commercial step ladder DAHU

modular platform

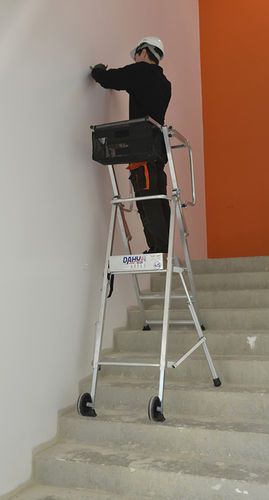

KEY FEATURES The first individual working platform designed to work on the most various and steepest differences in height. High-standard workmanship. Safety: 2 2 models: Dahu 4/5 & Dahu 4/6. Work in total safety. Covers up to 630 mm of difference in height. Can be set up on level ground. Fast, intuitive unfolding. 2 easy-to-use stabilizers. Very strong tool bag. Ultra-foldable for a mini-size when folded. Can fit in anywhere on the site. Can be transported in a small van. Individual height adjustment of the 4 legs. SPECIFICATIONS Staircase specific LIRP, ultra-foldable. Aluminium. Decree 2004-924 / NFP-93.353 (LIRP) standard. DAHU 4/5 Spreads over a difference in level of up to 537 mm. 2 work heights on level floor: 2.73 – 2.85 m. 2 platform heights on level floor: 0.73 – 0.85 m. Folded size: L. 1.47 m x W. 0.65 m x Thk. 0.36 m. Weight: 18.6 kg. DAHU 4/6 Spreads over a difference in level of up to 630 mm. 1 work height on level floor: 2.85 m 1 platform height on level floor: 0.85 m Folded size: L. 1.56 m x W. 0.65 m x Thk 0.36 m. Weight: 19.4 kg. 4 height-adjustable legs. 2 stabilizers. Protection by folding rail + safety chain. Non-slip platform 0,50 x 0,40 m. Toe-board height 100 mm. Load capacity: 150 kg. Non-slip rungs. 10 l. capacity tool bag. Highly slip-resistant pads. Non-marking Ø 150 mm wheels. Assembly type: welded. Made in France. DAHU 4/5 • Compact folded size for easy transport and storage. Difference-in-height: up to 537 mm On flat ground: 2 working heights: 2,73 & 2,85 m. DAHU 4/6 Difference-in-height: up to 630 mm On flat ground: 1 working height: 2,85 m.
