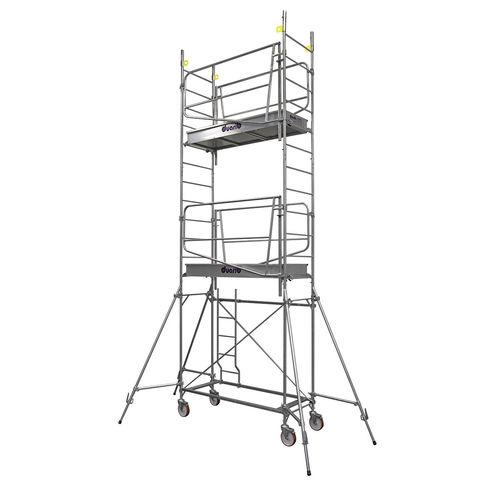

Galvanised steel scaffolding AC 200 FORMWORKS

aluminumon casters

KEY FEATURES Galvanized steel mobile scaffold tower which facilitates and secures work inside the forms, without hindering movement. Working height up to 6.60 m. Safety: 2 4 patents Safe assembly and disassembly by a single operator. First level access withn detachable ladder. Base structure clear of ground and raised. Large clearance under the platform (man height). Non-slip checker plate sheet surface. Stabilizers can be fixed from a distance. Non-slip aluminium checker plate sheet surface. Aluminium checker plate sheet= easy cleaning. Aluminium checker plate sheet=long lasting non-slip capability. Extendable stabilizers for uneven floors. Platform with integrated toe-boards. Adjustable wheels over 20 cm. Can be hoisted using four dedicated anchor points. SPECIFICATIONS Galvanized steel. Decree 2004-924 / EN 1004 standard. Uprights Ø: 35 mm. Max work height: 6.60 m. Length: 2 m - Width: 0.69 m. Overall size: Length: 1.90 m – Width. : 0.79 m. Compact base size. Safe assembly and disassembly by a single operator. Aluminium platform with 1 trapdoor. Incorporated aluminum toeboards. Robust aluminium chequer plate platform. Usable area: 1.70 x 0.56 m Load capacity per platform: 190 kg. Clearance height: 1.74 m. 4 adjustable stabilizers. Ø 200 mm wheels adjustable over 20 cm. 4 hoisting shackles. Assembly type: welded. Made in France.
