HC619 MONO
Ideal for 1 wing swing gates up to 3m/10ft
(total gate length up to 6m/20ft)
This gate opener package features powerful 600mm long stroke motor
This classic DUCATI "vintage" design gate operator features several advanced options combined with long-stroke actuators for greater strength and less mechanical stress of the system
DUCO SAFE
obstacle detection safety system guarantees maximal safety of use to your family
SELF LOCK TECHNOLOGY
The self-locking properties of the spindle increase the protection against a dangerous and unauthorized “pressing” of the gate and the otherwise necessary e-locks for the final positions can be omitted. A massive 20 mm diameter three principle steel spindle made of PR80 steel ensures long and reliable operation.

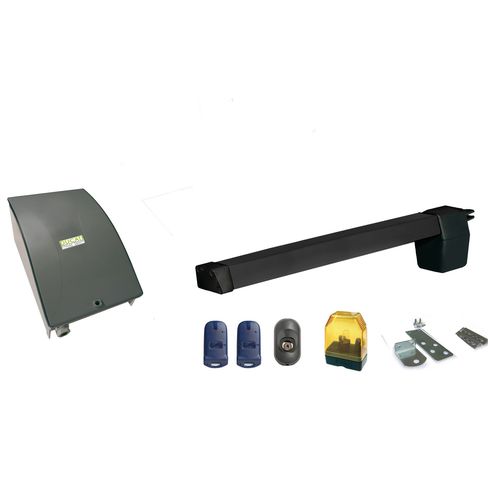

. 1x HC618- 600mm stroke electromechanical actuators supplied with 1 m outdoor use
cable H05RN-F 2 x 1mmq
. set of actuator's fixing brackets
. 1x KONTROL 7855Rol large control box with electronic board CTH42 , toroidal
transformer, integrated radio receiver
. 2x 6203Roll - 2 buttons 433,92 Mhz rolling code radio transmitters
. 1x HC7500 - blinking light 12V ( 24V for 24V variant)
. 1x SW5000 - key switch
. 1x key for manual emergency release
. 1x instruction manual
POWERFUL 600mm stroke electromechanical actuators
. Ideal for a safe, quick and easy installation: the system works in DC current and is
electrocution risk-free.
. Possibility of connecting an external timed courtesy light (example: garden light)
. 2 working modes: "STEP by STEP" ( push to open & push to close) or Automatic close with
adjustable time (you can vary the pause time from 1 to 100 seconds)
