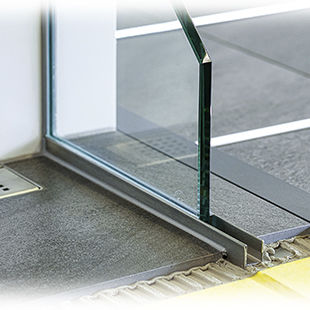

Stainless steel profile SHOWER-GK

cornerU-shapedfor partition wall

The perfect combination of inclined wedge and glass carrier profile • Easy installation with a combined inclined wedge • Secure fixing of the glass partition in the floor and wall • Elegant compensation of the gradient For floor-level showers, glass partitions are an extremely elegant choice when it comes to spray water protection. Here, the SHOWER-GK system from DURAL offers the perfect combination of stable support for the glass partition and safe protection of the edges from the ingress of water in the slope area. The large-dimensioned stainless steel profile, with its U-shaped glass carrier, offers high stability and safety thanks to glass thicknesses of 12 mm. The proven DURAL inclined wedge compensates for the required slope with style and elegance. For even greater stability and safety, the glass partition can also be fixed in the wall using SHOWER-GK wall. SHOWER-GK glas left 1 part Stainless steel (304) Brushed 2% gradient Glas thickness max.: 12 mm Covering thickness max.: 19 mm Length: 98, 120, 148 cm SHOWER-GK glas right 1 part Stainless steel (304) Brushed 2% gradient Glas thickness max.: 12 mm Covering thickness max.: 19 mm Length: 98, 120, 148 cm SHOWER-GK Wall Glas carrier profile for wall mounting Stainless steel (304) Brushed Glas thickness max.: 12 mm Covering thickness max.: 19 mm Length: 220 cm SHOWER-GK Inclined wedge left 1 part Stainless steel (304) Brushed 2% gradient Covering thickness max.: 10, 12,5 mm Length: 98, 120, 148 cm SHOWER-GK Inclined wedge right 1 part Stainless steel (304) Brushed 2% gradient
