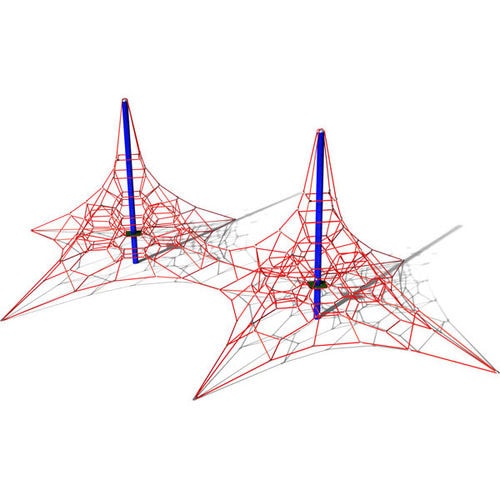

The Two Towers series is a double pyramid-style climbing structure featuring 2 climbing nets joined together. Double the adventure, double the fun!
Specifications
Size -- Length 13.30 m
Size -- Width 8.00 m
Size -- Height 3.90 m
Ages 5 - 12 yrs
Capacity 60
Use Zone -- Length 16.96 m
Use Zone -- Width 11.66 m
Use Zone -- Area 120.26 m2
Fall Height 1.83 m
Product Features:
SUPPORT POSTS: This will be 5 1/2" (139.8mm) OD galvanized steel tubing, finished with polyester powder coating.
POST SHIELDS: Where required, these will completely surround the post to fill in openings in the net, preventing entrapments. Shields will be made of a textile-reinforced flexible rubber material and secured with bolts.
CLIMBING NETS: This will be 20mm diameter and 22mm diameter, polyamide (nylon) rope cable with UV protection and fire retardant solution. Each rope consists of 6 strands each containing 24 galvanized steel reinforcing strands within a polyamide sleeve, wrapped around a solid polyamide core for a total of 144 steel reinforcing strands; each end of the cable having a junction loop attached onto the cable with a finished aluminum sleeve and lined with a galvanized steel wear bar. Rope shall achieve a Class 7-8 Colourfastness rating.
BALL KNOTS: This will be a one-piece compressed aluminum ball, compressed in place with 150,000 pounds force (667 kN) to prevent the connection from moving and causing premature cable wear.
BASIC FASTENERS: All fasteners for component attachments are stainless steel.
TURNBUCKLES: These will be steel alloy that will withstand a maximum load of over 87,675 pounds force (390 kN) along the main axis.
