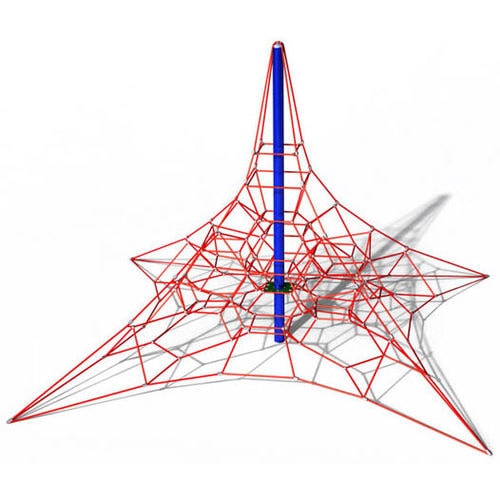

The Genesis series is a pyramid-style climbing structure for children to be able to reach new heights with their imagination and creativity. We believe in developing challenging structures for children to climb on so they can take the risks they want to take in a safe manner.
SUPPORT POSTS: This will be 5 1/2" (139.8mm) OD phosphate dipped steel tubing, finished with polyester powder coating.
POST SHIELDS: Where required, these will completely surround the post to fill in openings in the net, preventing entrapments. Shields will be made of a textile-reinforced flexible rubber material and secured with bolts.
CLIMBING NETS: This will be 20mm diameter and 22mm diameter, polyamide (nylon) rope cable with UV protection and fire retardant solution. Each rope consists of 6 strands each containing 24 steel reinforcing strands within a polyamide sleeve, wrapped around a solid polyamide core for a total of 144 steel reinforcing strands; each end of the cable having a junction loop attached onto the cable with a finished aluminum sleeve and lined with a galvanized steel wear bar. Edge ropes will contain a solid core of wound steel cables in place of the polyamide core for a total of 168 steel reinforcing strands. Rope shall achieve a Class 7-8 Colourfastness rating.
BALL KNOTS: This will be a one-piece compressed aluminum ball, compressed in place with 150,000 pounds force (667 kN) to prevent the connection from moving and causing premature cable wear.
BASIC FASTENERS: All fasteners for component attachments are stainless steel.
TURNBUCKLES: These will be steel alloy that will withstand a maximum load of over 87,675 pounds force (390 kN) along the main axis.
