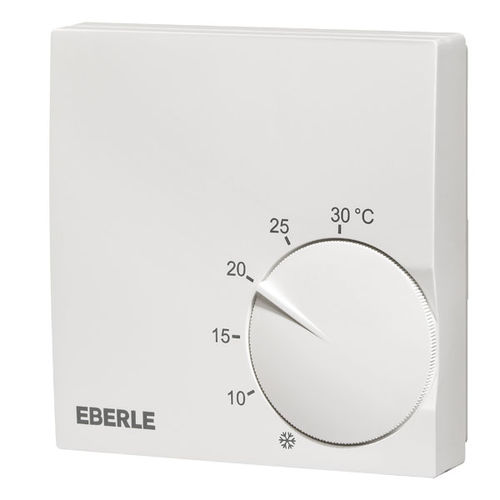

Mechanical thermostat RTR-S 6121-1manualroomwall-mounted
Add to favorites
Compare this product
Characteristics
- Type
- mechanical
- Function
- manual
- Application
- room
- Installation
- wall-mounted
- Color
- white
Description
Flush-mounted thermostat as room controller, AC 230V, 1 changeover contact, heating 5(2)A, cooling 1(1)A, blue backlighting
Contact -
Heating
Voltage -
AC 230 V 50 Hz
Switching current -
AC 10 mA…5A at cosϕ = 1; 10 mA…2 A at cosϕ = 0,6
Temperature range -
5 … 30°C
Measurements -
76 x 76 x 18,5 mm
Room controller, slim and elegant with very low installation height of only 18.5 mm for wall mounting. Suitable for controlling central, hot water floor, electric, night storage heaters, etc. Proven bimetal technology, a captive screw with threaded insert for fastening the housing cover. Easy mounting thanks to quadruple fixing. The terminals are designed for wires up to 2.5qmm.
