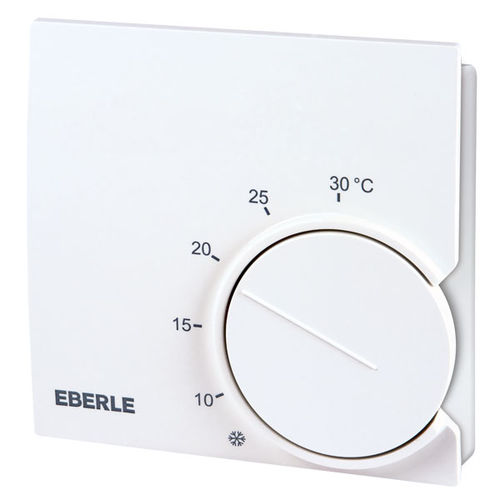

Mechanical thermostat RTR 9121

manualroomfor heating

Room controller, 5-30°C, AC 230V, 1 NC contact, heating: 10 mA ... 10 (4) A, with temperature reduction approx.5K Contact - Heating Voltage - AC 230 V 50 Hz Switching current - AC 10A at cos ϕ = 1; 4 A at cos ϕ = 0,6 Temperature range - 5 … 30°C Measurements - 84 x 84 x 27,5 mm Room controller for wall mounting. Suitable for controlling central, hot water floor, electric, night storage heaters, etc. Extremely reliable, 5-year warranty. Bimetallic technology with thermal feedback and high precision. Range restriction in the setting knob as a heating cost brake. Housing colour active white, similar to RAL 9016. Surface mounting or directly on flush-mounted box with vertical mounting holes or with snap-on mounting on DIN rail. degree of protection IP 30, hysteresis 0.5 K
