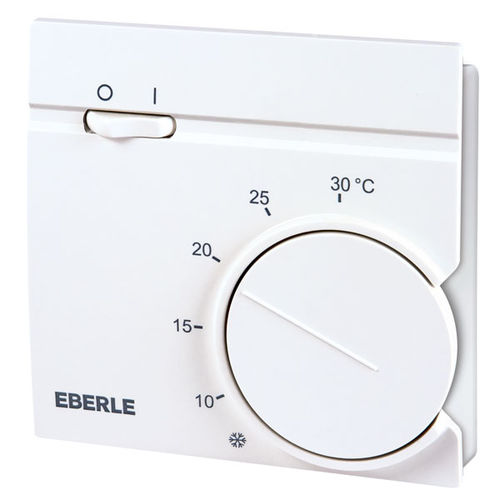

Mechanical thermostat RTR 9164

manualfor heatingwall-mounted

Room controller, 5-30°C, AC 230V, 1 NC contact, heating: 8 ... 14 (4) A, 1 mains switch, with temperature reduction approx.5K Contact - Heating Voltage - AC 230 V 50 Hz Switching current - AC 10 mA…5A at cosϕ = 1; 10 mA…4 A at cosϕ = 0,6 Temperature range - 5 … 30°C Measurements - 84 x 84 x 27,5 mm Room controller for wall mounting. Suitable for controlling central, electric, night storage heaters, etc. Extremely reliable, 5-year warranty. Bimetallic technology with thermal feedback and high precision. Range narrowing in the setting knob as a heating cost brake. Temperature reduction possible via external timer. Housing colour active white, similar to RAL 9016. Surface mounting or directly on flush-mounted box with vertical mounting holes or with snap-on mounting on DIN rail. 5-year warranty, degree of protection IP 30, hysteresis 0.5 K, temperature setback (TA) approx. 5 K via external timer, 1 mains switch
