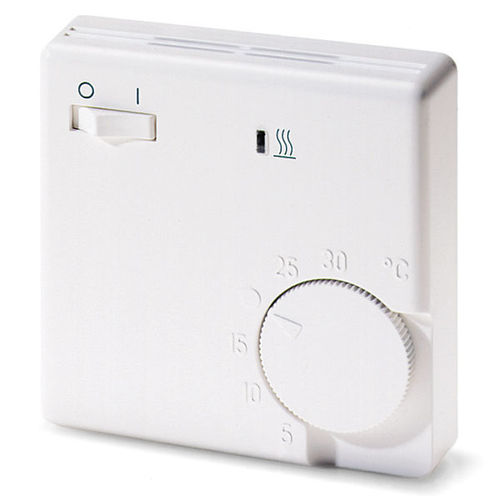

High-precision bi-metal technology with thermal feedback
Mounted onto surface or directly onto flush-mounted box, with vertical mounting holes or snap-on mounting on DIN rail
Clearly arranged terminal row and ample terminal space for simple and fast installation
Housing colour pure white similar to RAL 9010
Mountable on adapter frame ARA 1E
Article No.
101 1104 51 102
Temperature range
5 … 30 °C
Contact
1 break contact
Operating voltage
230 V AC 50/60 Hz
Switching current
AC 10 mA … 16(4) A; DC 100 W
Temperature set-back (TA)
~ 5 K
Hysteresis
~ 0,5 K
Switch
mains ON/OFF
Indicator lamp
calling for heat
Protection class of housing
IP 30 / insulated
Dimensions
75 x 75 x 27,5 mm
• Bimetal technology with thermal feedback and high precision
• Surface mounting or directly on a conduit box with vertical fixing
holes or on a DIN rail with a snap-on clip
• Clear terminal arrangement and ample terminal space for quick and
easy installation
• Housing color: pure white (similar to RAL 9010)
• Mountable on adapter frame ARA 1E
(accessories
