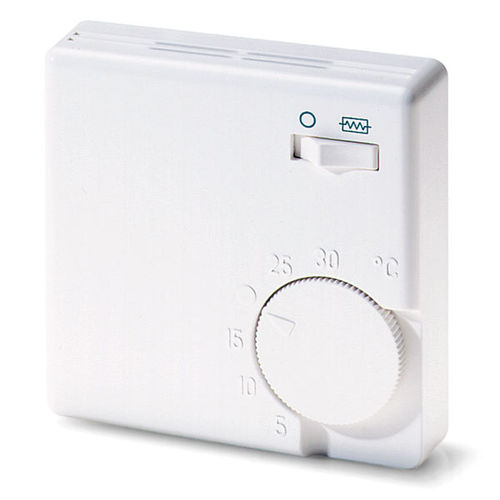

Mechanical thermostat RTR-E 3585

manualfor heatingwall-mounted

oom controller, 5-30°C, AC 230V, 1 NC contact, 16A, On/Off Contact - Heating Voltage - AC 230 V 50/60 Hz Switching current - AC 10 mA…16A at cos ϕ = 1; 4 A at cos ϕ = 0,6 Temperature range - 5 … 30°C Measurements - 75 x 75 x 27,5 mm Room controller for wall mounting. Suitable for the control of night storage heaters, warm air heaters etc.. Switch auxiliary heating. Bimetal technology with thermal feedback and high precision. Surface mounting or directly on flush-mounted box with vertical mounting holes or with snap-on mounting on DIN rail. Hysteresis ~ 0.5 K, degree of protection IP 30, 1 switch additional heating, with thermal feedback, surface mounting or with adapter frame ARA 1 E directly on flush-mounted box, when mounting on flush-mounted box with horizontal fixing holes, adapter frame ARA 1 E must also be ordered
