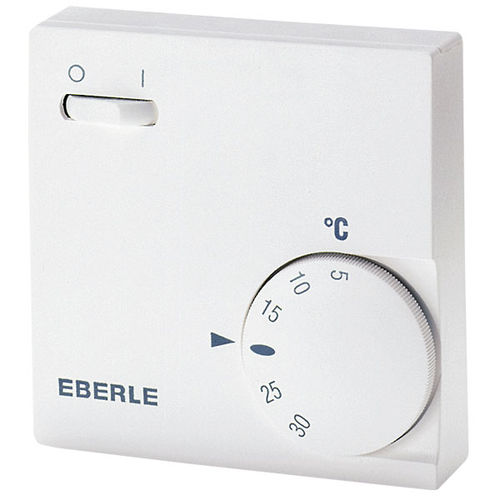

Electronic thermostat RTR R1W

manualroomwall-mounted

Room controller, 5-30°C, AC 230V, 1 NC contact, 3..16A, with 1.8 m cable Voltage - AC 230 V 195 … 253 V 50 Hz Switching current - AC 10 mA…5A at cosϕ = 1; 10 mA…4 A at cosϕ = 0,6 Temperature range - 5 … 30°C Measurements - 75 x 75 x 27,5 mm Electronic room controller for wall mounting. Suitable for controlling central, hot water floor, electric, night storage heaters, etc. On/off switch. Improved control characteristics due to pulse-width modulation. Connection of a remote sensor is possible. Heating/cooling changeover in connection with manifolds with corresponding input. Range restriction in the setting knob as a heating cost brake. Surface mounting or directly on flush-mounted box with vertical mounting holes or with snap-on mounting on DIN rail. degree of protection IP 30, remote sensor optional, surface mounting or directly on flush-mounted box, PI control with PWM output, switch On/Off, 1-pole, heating/cooling changeover in conjunction with distribution strips
