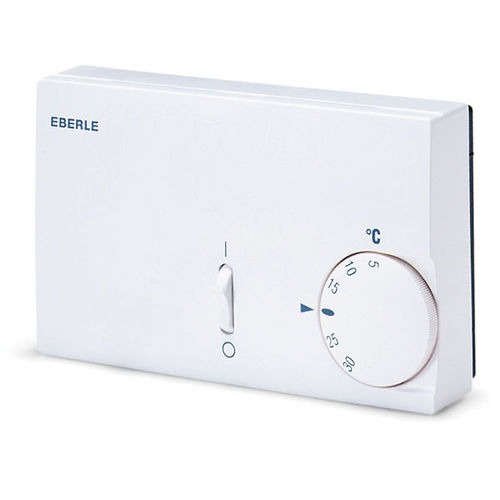

Electronic thermostat RTR-E 7610

manualroomfor heating

Room controller, 5-30°C, battery-operated, 1 changeover contact 2(1)A, 12...240 V AC/DC, potential-free Contact - Heating Voltage - AC 230 V 50/60 Hz Switching current - AC 10A at cos ϕ = 1; 4 A at cos ϕ = 0,6 Temperature range - 5 … 30°C Measurements - 127 x 75 x 27,5 mm Two-stage electronic room controller for wall mounting. Suitable for controlling night storage heaters, direct electric heaters or warm air heaters. Switch on/off. The step spacing is 1K. Range restriction in the setting knob as a heating cost brake. Surface mounting or directly on flush-mounted box with vertical mounting holes. Hysteresis ~ 0.5 K, degree of protection IP 30, 2-step contact, 10A, 1 switch On/Off, electronic controller, with range reduction in the setting knob, surface mounting or with adapter frame ARA 1.7 E directly on flush-mounted box, when mounting on flush-mounted box with horizontal fixing holes, adapter frame ARA 1.7 E must also be ordered
