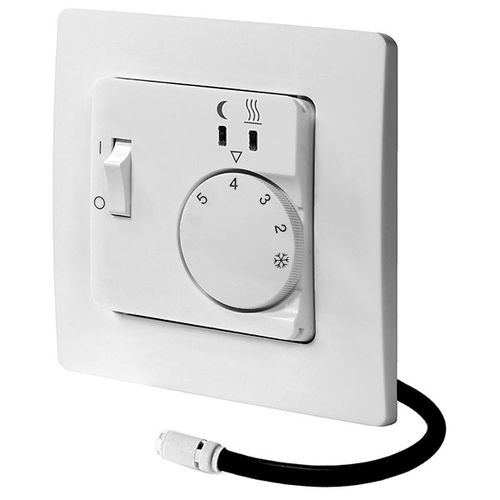

Electronic thermostat FRE F2A-50

programmablefor underfloor heatingrecessed

Flush-mounted floor controller 50x50, AC 230V, 1 NO contact, 16A, lamps: heat, set-back operation. Load interruption according to EN 50559 Contact - Heating Voltage - AC 230 V 50 Hz Switching current - AC 16A at cos ϕ = 1; 4 A at cos ϕ = 0,6 Temperature range - 10 ... 50°C Measurements - 80 x 80 x 43 mm (total) 80 x 80 x 18 mm (visible) Electronic controller for recording the floor temperature, for flush mounting. With load interruption according to EN 50559. Suitable for controlling electric floor or wall/ceiling heating systems. Temperature reduction, optionally 3K or 5K, possible via external timer. Control with load interruption according to EN 50559. Displays: Controller requests heat / setback mode. Mains switch 2-pole. In case of sensor error emergency operation with 30 % heating. With 4m remote sensor (extendable up to 50m) included in delivery. Mounting in 55 mm flush-mounted box degree of protection IP 30, 2 control lamps: heat, lowering mode, load interruption according to EN 50559, mounting in 55 mm flush-mounted box
