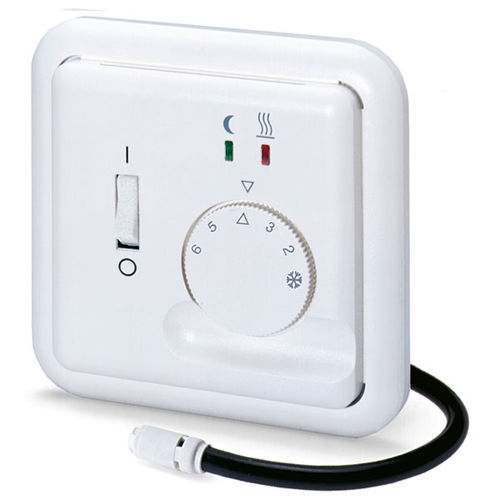

Electronic thermostat FRE L2A

manualroomfor heating

Room controller AC 230V, scale 1...6 (=5...30C), 1 NO contact, 16A, on/off, heat lamp Contact - Heating Voltage - AC 230 V 195 … 253 V 50 Hz Switching current - AC 16A at cos ϕ = 1; 4 A at cos ϕ = 0,6 Temperature range - 5 … 30°C Measurements - 84 x 84 x 28 mm Electronic controller for recording the room temperature and limiting the floor temperature, for flush mounting. With load interruption according to EN 50559. Suitable for controlling electric floor or direct electric heating systems. Temperature setback, optionally 3K or 5K, possible via external time switch. Control indicators: Controller prompts heat on / setback mode. Mains switch 2-pole. In case of sensor error, emergency operation with 30 % heating. With 4m remote sensor (extendable up to 50m) included in delivery. Mounting in 55 mm flush-mounted box degree of protection IP 30, flush-mounted room thermostat for direct underfloor heating - electronic, range reduction in the setting knob, temperature reduction optionally 3K or 5K via external timer, mounting in 55 mm flush-mounted box, lamps: heat, setback mode. Load interruption according to EN 50559; 24 V AC on request.
