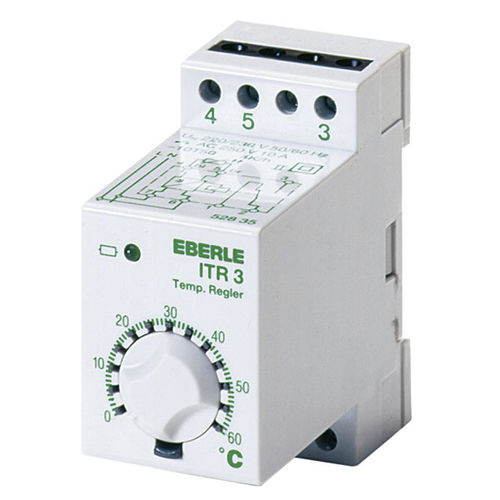

DIN rail temperature controller ITR-3 20

Temperature controller on mounting rail -40...20°C, AC 230V, 1 changeover contact, potential-free, 10A Contact - Heating and cooling (change over, voltage-free) Voltage - AC 230 V 50/60 Hz Switching current - AC 10A at cos ϕ = 1; 4 A at cos ϕ = 0,6 Temperature range - -40 … 20°C Measurements - 36 x 70 x 70 mm Universal temperature controller with remote sensor (not included, must be ordered separately) for mounting on mounting rail. Suitable for controlling central, hot-water floor, hot-air, electric, industrial heating etc. The setting knob has a range restriction and lock. Indicator lamp, controller calls for heat. Hysteresis ~ 1 K, degree of protection IP 40, probe extendable up to 50 m, 1 control lamp "relay on", range narrowing 5K steps
