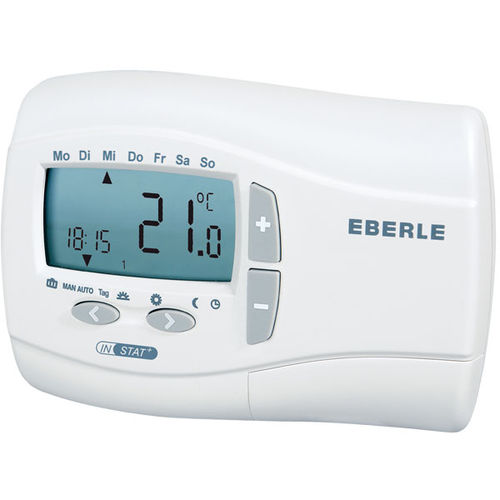

Digital thermostat INSTAT+ 2R

programmablefor heatingwall-mounted

Digital clock thermostat, room controller, battery 7...32C, 1 changeover contact, potential free, 16A Contact - Heating and cooling (change over, voltage-free) Voltage - 2 x 1,5 V battery Switching current - AC 16A at cos ϕ = 1; 4 A at cos ϕ = 0,6 Temperature range - 7 … 32°C Measurements - 137 x 96 x 31 mm Room controller with digital clock function, battery-operated, for recording the room temperature for wall mounting. Suitable for controlling central heating, hot water floor heating, hot air heating, night storage heating, etc. Fully automatic setting of time and summer/winter time. Large, easy-to-read display. Self-learning heating curve (the temperature is reached at the set time). Preset and adjustable weekly and separate daily time programmes. Unauthorised adjustment lock protects against unauthorised adjustment. Combined holiday and party function (time-limited temperature reduction or increase for hours or days). Presetting of an upper and lower limit value for the temperature setting and much more. 2-wire connection battery-operated 2 x 1.5V (AA) Temperature setting range in 0.1 K steps, potential-free, 1 degree of protection IP 30, fully automatic setting of time and summer/winter time, self-learning heating curve, large, easy-to-read display, weekly and separate daily programme, 3 preset programmes, 6Adjustable temperatures and 2, 4 or 6 freely selectable times for each day, control method: Fuzzy controller with pulse-width modulation, pump/valve protection , clear LCD display, menu-guided operation via 4 keys.
