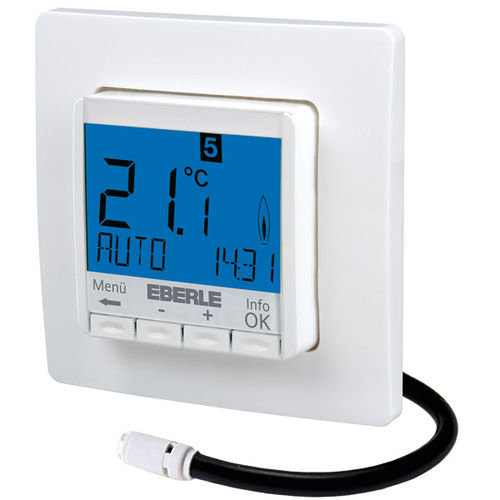

Digital thermostat FIT 3L

programmableroomfor heating

Flush-mounted clock thermostat as floor controller, AC 230V, 1 NO contact 16A, white backlighting Voltage - AC 230 V 50 Hz Switching current - AC 10 mA...10A at cos ϕ = 1; 4 A at cos ϕ = 0,6 Temperature range - 5°C ... 30°C Measurements - 80,5 x 80,5 x 25 mm Flush-mounted clock thermostat is suitable for controlling direct electric heating or hot water floor heating systems. Very large display, backlighting in blue is off, briefly on after pressing a button. Single-line text display for self-explanatory operation. Automatic summer/winter time changeover. Minimum and maximum floor temperature adjustable. Preset and adjustable lifestyle time programmes. Unauthorised person security. Optimum start (temperature is reached at the set time). Max. 9 switching times per day. Short-time timer (party) for changing the temperature by the hour. Frost protection function. Temperature setting range can be limited. Holiday function with date specification (holiday from....to). PWM (Pulse Width modulation) or ON/OFF. Heating/cooling changeover, adaptation to valves de-energised open. Energy consumption display (switch-on x costs). With 4m remote sensor (extendable up to 100m) included. Mounting in 55 mm flush-mounted box - Pulse width modulation (PWM), cycle time adjustable - 2-point (on/off), hysteresis and minimum on/off time adjustable, incl. remote sensor, load interruption EN 50559, 0.1°C steps, temperature in 0.5°C steps
