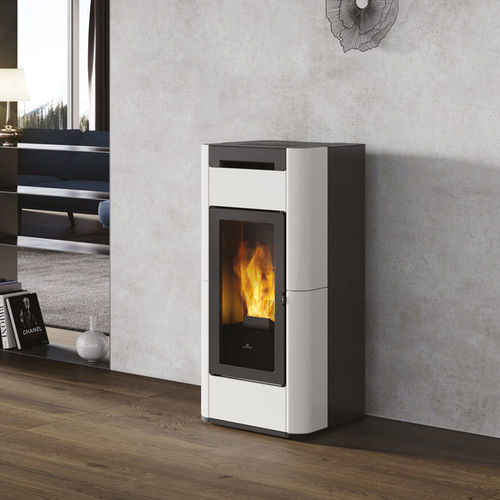

Pellet heating stove TERA H

5 kW...10 kW20 kW...50 kWfree-standing

• cast iron and steel combustion chamber • ceramic ignitor • pellet load with brushless auger motor • smoke outlet Ø 10 cm rear, male • systems display settings, with terminal board for external probes • concealed display • hot air ventilation (modulable and deactivatable) • daily/weekly program • closed expansion tank • pellet level sensor • Leonardo system • THE MIND system with built-in Wi-Fi • airKare system • ashKontrol system • To ensure correct operation, one of the available kits must be installed AVAILABLE MODELS: • Creamy white ceramic • Bordeaux ceramic • Matt light gray ceramic Optional: • anti-condensation valve • pressure gauge kit to be installed on system water pressure display kits efficiency - % - 94 - 93 fuel consumption - kg/h - 1,8/5,6 - 1,8/6,6 tank capacity - kg - 45 - 45 autonomy - h - 8/25 - 7/25 water content - l - 30 - 30 Ø combustion product outlet - cm - 10 - 10 Ø external air intake - cm - 5 - 5 total weight - kg - 250 - 250 vol. that can be heated (depending on the type of system) - m³ - 655 - 770
