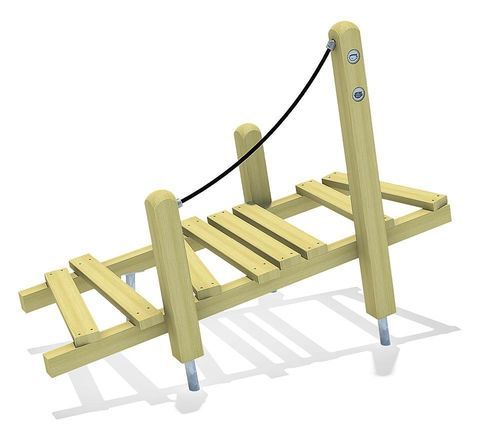

Playground obstacle course SAJAMA

fitnessplatformwalk ramp

The Sajama ramp is an outdoor play ramp intended for children (recommended from 3 years), designed to promote physical fitness and social competence.

Scope of delivery

• 3x post construction: softwood and steel
• 1x ramp plane: softwood
• 1x post base: galvanised steel
• 1x rope structure: plastic-coated steel cable

Play values

• Fitness
• Social competence

Technical characteristics / specifications

• Material: pressure-impregnated softwood
• Minimal space (W x D x H): 4.86 x 3.66 x 2.40 m
• Recommended age: from 3 years
• Free fall height: 59 cm
• Largest part (L x W x H): 1.87 x 0.76 x 0.14 m
• Foundation level: ET 400
• Foundations: 4x PFs or 4x CF
• Soil quality (ground constitution): at least stone
• Assembly: 2 persons / 4 h
• Ex works: no
• Impact protection netto: -
• Play values (summary): Fitness; Social competence
• CO2 emissions of the product: 114.8 kg
• Share of renewable raw materials: 80%
• Share of recycled material: 18%
• Weighted emission factor (condition <2): 1.4 kg
