Wooden climbing structure ANTOFALLA

for playgroundfor schoolrope

Product overview

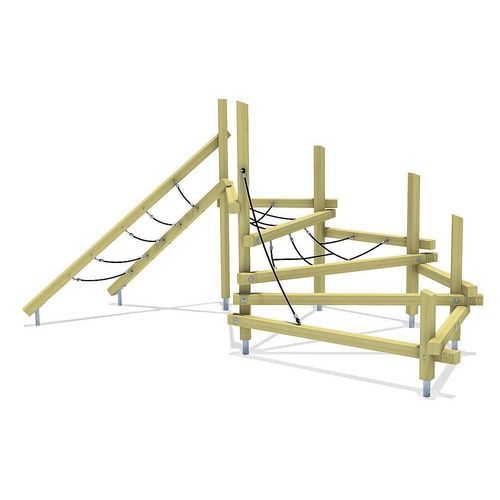

Climbing combination Antofalla is an outdoor play and climbing unit designed for children to develop balance, strength and cooperative play. The unit combines softwood posts, galvanised steel elements and plastic-coated steel cable rope structures to create a varied climbing course suitable for parks and school playgrounds.

Delivery contents

• 6x post construction: softwood, galvanised steel
• 7x balancing beam: softwood
• 2x post bases: galvanised steel
• 8x rope structure: plastic-coated steel cable

Play value

• Physical fitness and coordination
• Social competence and cooperative play

Technical specifications

• Material: softwood pressure-impregnated
• Minimum space (footprint): 7.98 x 5.64 x 3.25 m
• Impact protection net: 26.0 m²
• Freefall height: 145 cm
• Largest part: 2.9 x 0.1 x 0.1 m
• Foundation level: ET 400
• Foundations: 8x CF or 8x PFs
• Soil quality / ground: at least lawn
• Recommended age group: from 6 years
• Product number (SKU): 51155401100
• Ex works: no

Installation & logistics

• Assembly: 2 persons / 6 h
• Foundations required as specified above
• Delivery time: 8 weeks

Sustainability

• CO2 emissions of the product: 400.3 kg
• Share of renewable raw materials: 84%
• Share of recycled material: 13%
